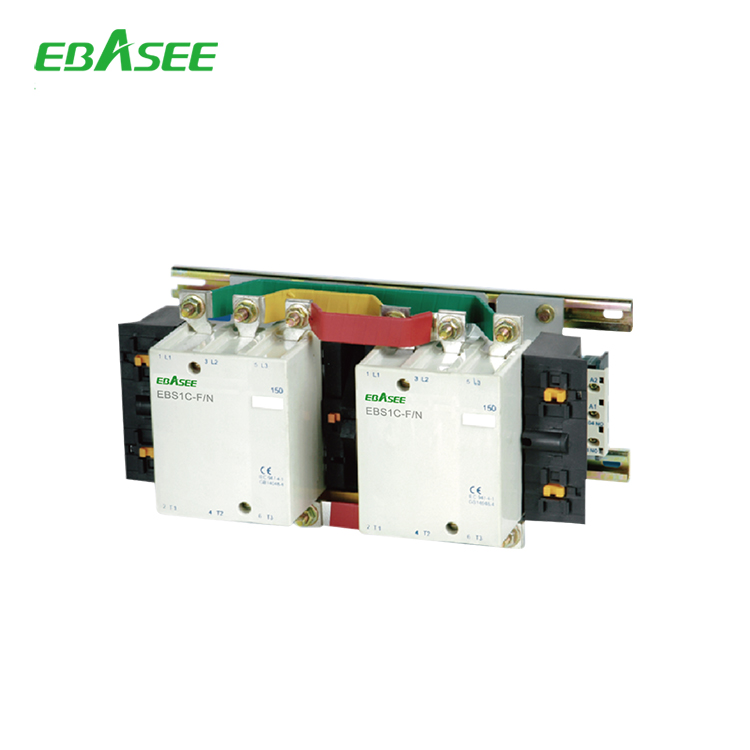

EBS1C-F/N series reversible contactors are mainly used for controlling reversible operation or reverse braking motors in circuits with AC 50/60Hz and rated insulation pad 690V and rated current up to 380V A under AC-3 category, which can prevent phase-to-phase short circuit of motors during commutation and is more reliable than electric interlocking only. They are combined with thermal relays of corresponding specifications to protect
possible load circuits. This product uses IEC60947-4-1.
| Model | Rated
insulation voltage (V) |
Rated
thermal current (A) |
Rated operation current
3p- 440V 50/60Hz LL/NL |
Rat ed operat ion power F or AC3 difference in
t emperat ure of load rat ed mot or power 0≤55C |
||||||
| 220V | 380V | 415/ 440V | ||||||||
| kW | hp | kW | hp | kW | hp | |||||
| 1C-F/N115/3 | 1000 | 200 | NL/LL | 120/- | 30/- | 40/- | 55/- | 75/- | 60/- | 80/- |
| 1C-F/N115/4 | 1000 | NL/LL | 150/115 | 40/30 | 55/40 | 75/50 | 100/72 | 80/60 | 110/80 | |
| 1C-F/N150/3 | 1000 | 250 | NL/LL | 150/- | 40/- | 53/- | 75/- | 100/- | 80/- | 110/- |
| 1C-F/N150/4 | 1000 | NL/LL | -/150 | -/40 | -/55 | -/75 | -/100 | -/80 | -/110 | |
| 1C-F/N185/3 | 1000 | 275 | NL/LL | 185/- | 55/- | 75/- | 90/- | 125/- | 100/- | 135/- |
| 1C-F/N185/4 | 1000 | NL/LL | 205/185 | 60/55 | 80/75 | 100/90 | 135/125 | 110/110 | 150/135 | |
| 1C-F/N225/3 | 1000 | 315 | NL/LL | 225/- | 68/- | 90/- | 110/- | 150/- | 120/- | 160/- |
| 1C-F/N225/4 | 1000 | NL/LL | 245/225 | 70/68 | 95/90 | 120/110 | 160/150 | 130/120 | 175/160 | |
| 1C-F/N265/3 | 1000 | 350 | NL/LL | 265/- | 75/- | 100/- | 132/- | 180/- | 140/- | 190/- |
| 1C-F/N265/4 | 1000 | NL/LL | 300/265 | 85/75 | 115/100 | 150/132 | 200/180 | 160/140 | 215/190 | |
| 1C-F/N330/3 | 1000 | 400 | NL/LL | 330/- | 100/- | 135/- | 165/- | 221/- | 180/- | 240/- |
| 1C-F/N330/4 | 1000 | NL/LL | 350/330 | 110/100 | 150/135 | 175/165 | 235/221 | 195/180 | 260/240 | |
| 1C-F/N400/3 | 1000 | 500 | NL/LL | 400/- | 115/- | 155/- | 200/- | 270/- | 220/- | 300/- |
| 1C-F/N400/4 | 1000 | NL/LL | 450/400 | 132/110 | 180/150 | 220/200 | 300/270 | 250/220 | 340/300 | |
| 1C-F/N500/3 | 1000 | 700 | NL/LL | 500/- | 147/- | 200/- | 250/- | 340/- | 280/- | 380/- |
| 1C-F/N500/4 | 1000 | NL/LL | 630/500 | 185/147 | 250/200 | 335/250 | 450/340 | 355/280 | 480/380 | |
| 1C-F/N630/3 | 1000 | 1000 | NL/LL | 630/- | 200/- | 270/- | 335/- | 450/- | 375/- | 500/- |
| 1C-F/N630/4 | 1000 | NL/LL | 800/630 | 200/220 | 300/270 | 400/335 | 540/450 | 450/375 | 610/500 | |
| 1C-F/N800/3 | 1000 | 1500 | NL/LL | 800/- | 200/- | 300/- | 400/- | 540/- | 450/- | 610/- |
| 1C-F/N780/3 | 1000 | NL/LL | 780/- | 220/- | 300/- | 400/- | 540/- | 425/- | 570/- | |
| 1C-F/N780/4 | 1000 | NL/LL | 1000/780 | 280/220 | 380/300 | 500/400 | 680/540 | 530/425 | 720/570 | |
| Poles | Type Code | |||||
| Rated operating current | Standard power ratings of 3 phase motors 50- 60Hz AC- 3 | |||||
| 380V AC- 3 | Conventional | 230V 50Hz | ||||
| thermal current | Please contact us for other coil voltage . | |||||
| 220V | 380V | 415V | ||||
| 230V | 400V | 440V | ||||
| A | A | KW | KW | KW | ||
| 115 | 200 | 30 | 55 | 60 | 3 | 1C- F N1153P5 |
| 4 | 1C- F N1154P5 | |||||
| 150 | 250 | 40 | 75 | 80 | 3 | 1C- F N1503P5 |
| 4 | 1C- F N1504P5 | |||||
| 185 | 275 | 55 | 90 | 100 | 3 | 1C- F N1853P5 |
| 4 | 1C- F N1854P5 | |||||
| 225 | 315 | 63 | 110 | 120 | 3 | 1C- F N2253P5 |
| 4 | 1C- F N2254P5 | |||||
| 265 | 350 | 75 | 132 | 140 | 3 | 1C- F N2653P5 |
| 4 | 1C- F N2654P5 | |||||
| 330 | 400 | 100 | 165 | 180 | 3 | 1C- F N3303P5 |
| 4 | 1C- F N3304P5 | |||||
| 400 | 500 | 115 | 200 | 220 | 3 | 1C- F N4003P5 |
| 4 | 1C- F N4004P5 | |||||
| 500 | 700 | 147 | 250 | 280 | 3 | 1C- F N5003P5 |
| 4 | 1C- F N5004P5 | |||||
| 630 | 1000 | 200 | 335 | 375 | 3 | 1C- F N6303P5 |
| 4 | 1C- F N6304P5 | |||||
| 780 | 1500 | 220 | 400 | 425 | 3 | 1C- F N7803P5 |
| 4 | 1C- F N7804P5 | |||||
