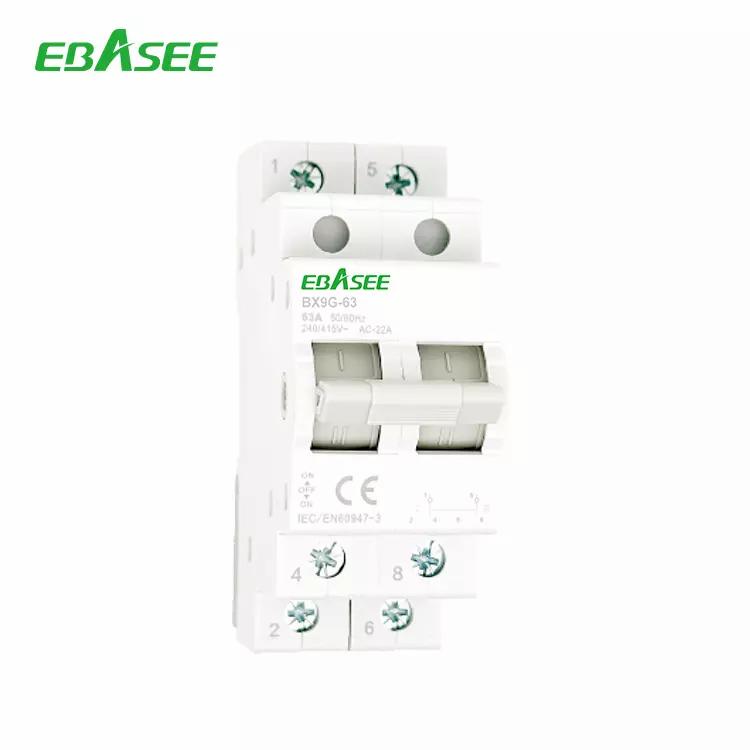

The Changeover Switch can switch on, load and break the circuit under normal conditions, using as Switch Disconnectors.
| Type | Standard | lEC/EN 60947-3 | |
|
Electrical features |
Poles | P | 1, 2, 3, 4 |
| Rated voltage Ue | V | 240/415V | |
| Rated current ln | A | 63 | |
| Rated frequency | Hz | 50/60 | |
| Contact form | V | 1-0-2 | |
|
Mechanical features |
Electrical life | t | 1500 |
| Mechanical life | t | 8500 | |
| Protection grade | IP20 | ||
| Ambient temperature
(with daily average≤35°C) |
°C | -5~+40 | |
| Installation | Terminal / cable size | mm² | 16 |
| Mounting | On DlN rail EN60715(35mm) by means of fast clip device |
