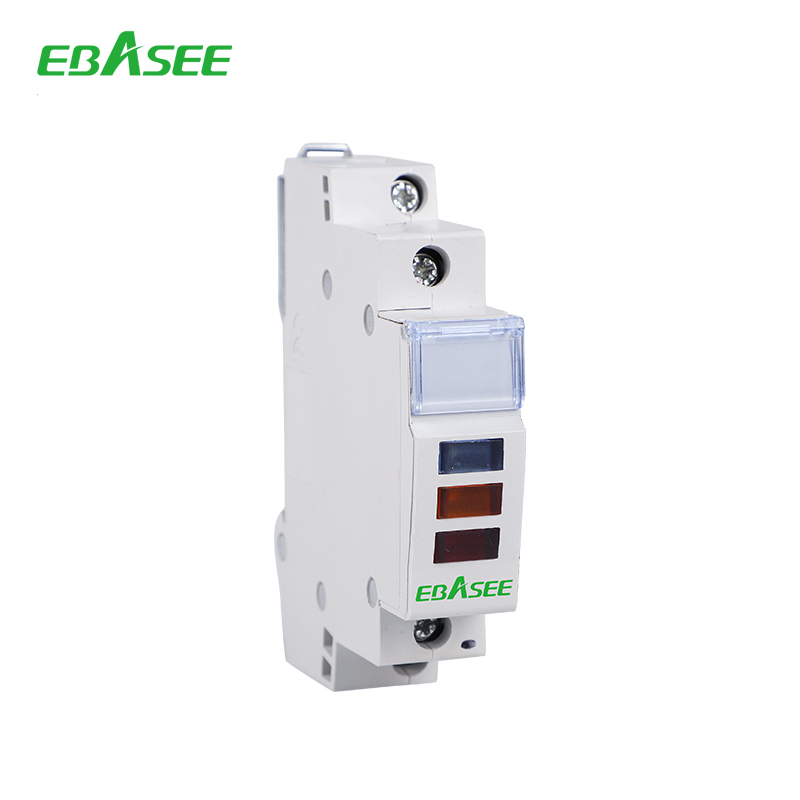

BX9D-L Indicating Light


BX9D-L indicator light can be used in50/60Hz 230V AC power circuit for alarm or indication with light signal. It can be used together with our other modular products or separately.


Type Standard   lEC/EN 60947-5-1



Electrical features

Illumination   Nelon, LED
Rated voltage Ue V 230
Max.power W 1.2 W(Nelon);0.6 W(LED)
Rated frequency Hz 50/60
Color   Red, Green, Yellow, White

Mechanical features

Service duration H 15,000 hours(Nelon),30,000 hours(LED)
Protection degree   IP20
Ambient temperature(with daily average≤35℃) -5~+40


Terminal size top / bottom for cable and pin-type busbar mm² 35
AWG 18-1/0

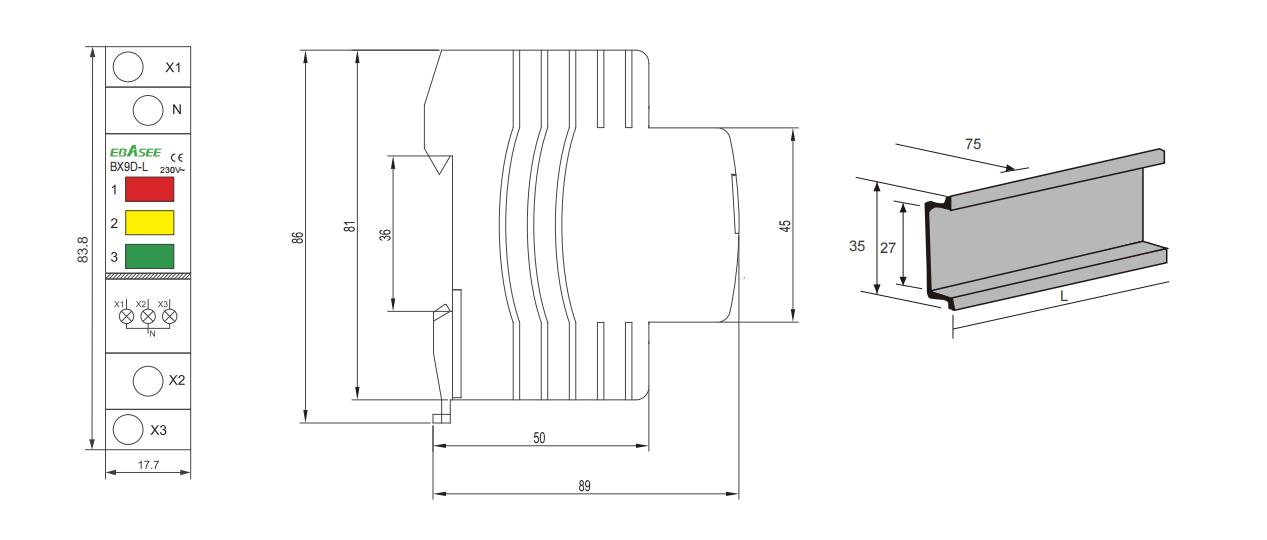

BX9D-L Indicating Light Dimensions
