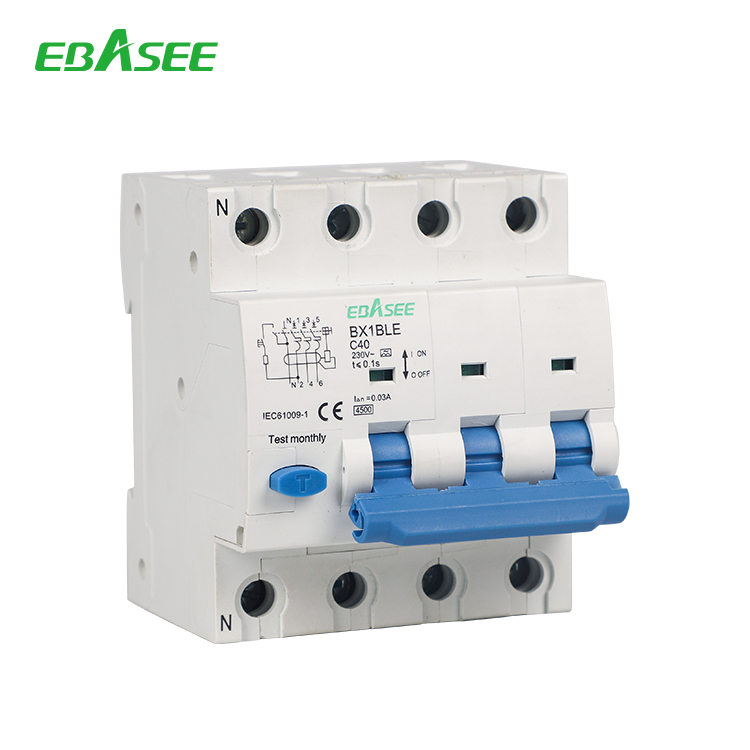

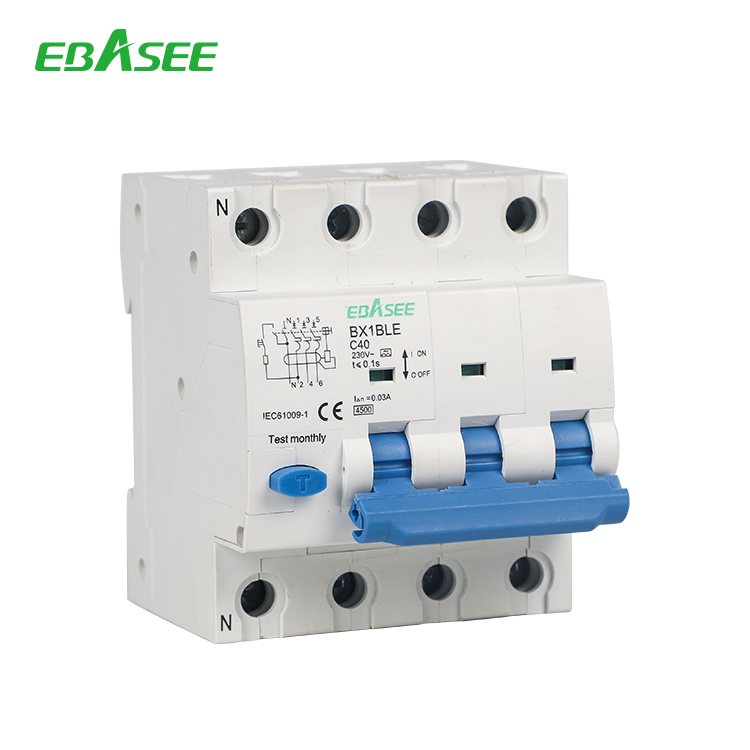

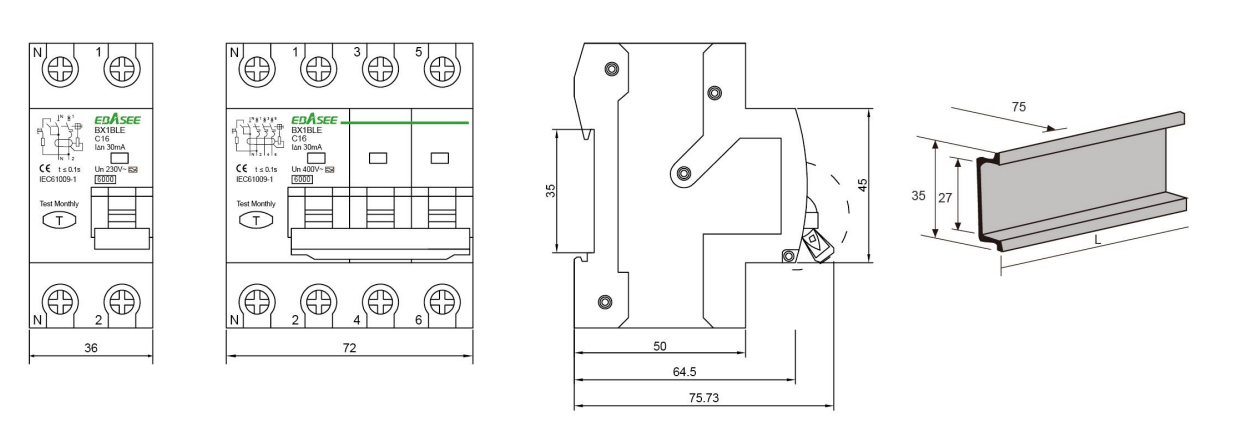

Suitable for industrial, commercial, high-rise and civil residences circuit protection.
| Type | Standard | ||
|
Electrical features |
Mode | Electro-magnetic ，electronic type | |
| Poles | P | 1 P+N 3P+N | |
| Type(wave form of the earth leakage sensed) | A AC | ||
| Thermo-magnetic release characteristic | B, C, D | ||
| Rated current In | A | 6, 10, 16, 20, 25,32,40 | |
| Rated voltage Ue | V | 230,240 | |
| Rated sensitivity IAn | A | 0.01, 0.03, 0.1, 0.3, 0.5 | |
| Rated residual making and breaking capacity IAm | A | 500 | |
| Rated short-circuit capacity lcn | A | 6000 | |
| Break time under IAn | s | ||
| Rated frequency | Hz | 50/60 | |
| Rated impulse withstand voltage(1.2/50)Uimp | V | ||
| Dielectric test voltage at ind.Freq.for 1min | kV | 2 | |
| Insulation voltage Ui | V | 250 | |
| Pollution degree | 2 | ||
|
Mechanical features |
Electrical life | t | |
| Mechanical life | t | 10000 | |
| Contact position indicator | Yes | ||
| Protection degree | IP20 | ||
| Ambient temperature(with daily averages35 ℃) | ℃ | -5~+40 | |
| Storage temperature | ℃ | -25~+70 | |
|
Installation |
Terminal connection type | Cable/Pin-type busbar/U-type bar | |
| Terminal size top/bottom for cable | mm² | 25 | |
| Terminal size top/bottom for busbar | mm² | 25 | |
| Tightening torque | N*m | 2 | |
| In-Ibs | 18 | ||
| Mounting | on DIN rail EN60715(35mm)by means of fast clip device | ||
| Connection | From top |
