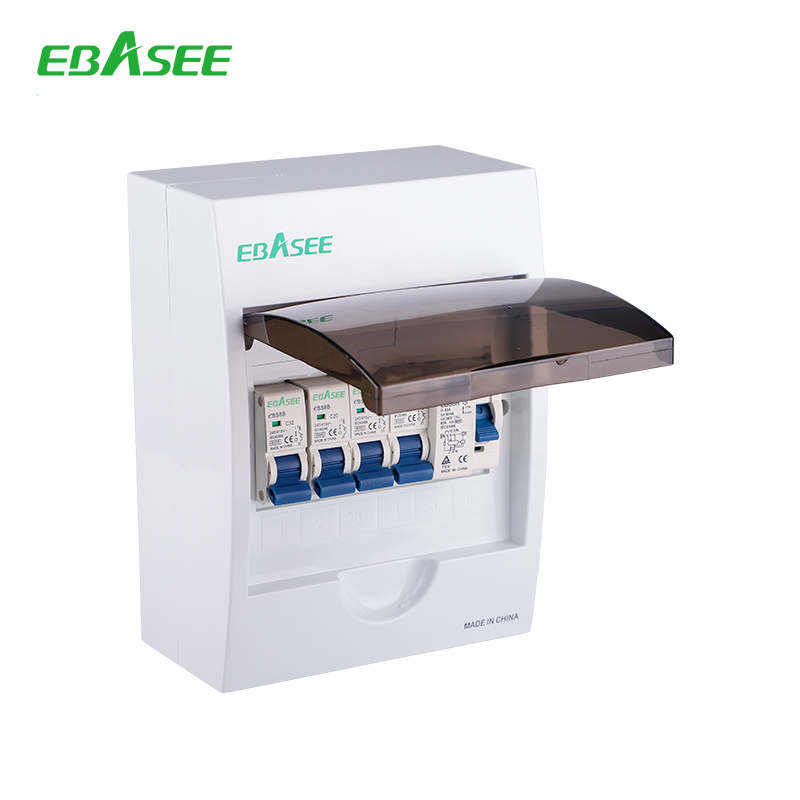

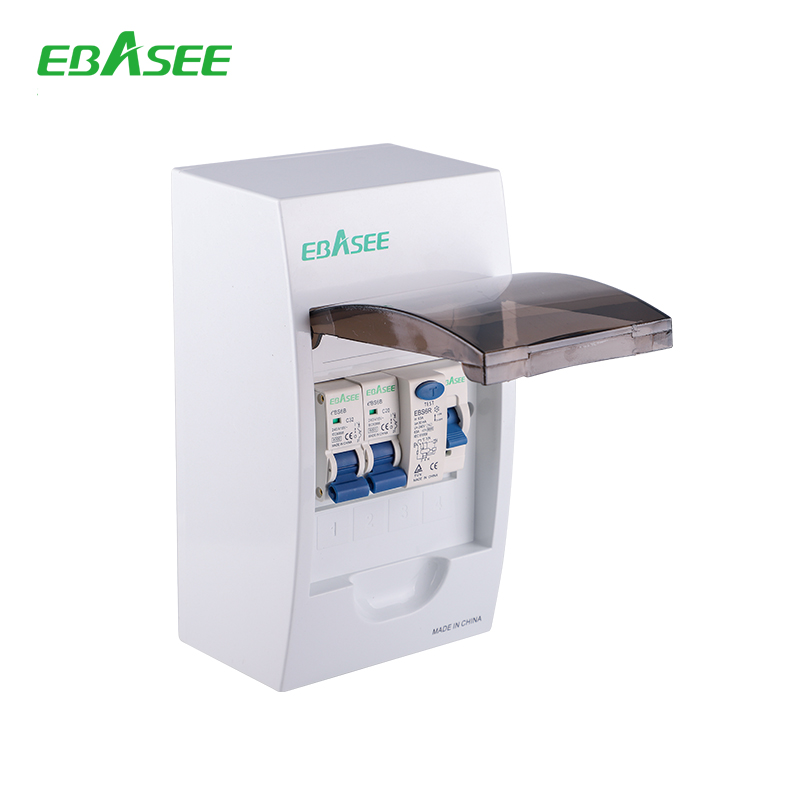

BS5D Complete Distribution Board

Function

This product applies to terminal of AC 50Hz(or 60Hz), rated operating Voltage up to 400V and rated current up to 63A, equipped with various modular electric for functions of electric energy distribution,control,(short circuit,overload,earth leakage, over-voltage) protection,signal,measurement of terminal electric appliance. It complies with IEC60439-3.

Specifications

Distribution Box Product Model Number of ways Ways for

Isolator

Ways for

MCB

Number of  busbars’pins Hole number of

copper terminal

6*9 mm

Distribution Box BS5DS/F 4 2 2 3 4+4
Distribution Box BS5DS/F

6

2 2 3 6+6
Distribution Box BS5DS/F 2 3 4 6+6
Distribution Box BS5DS/F 2 4 5 6+6
Distribution Box BS5DS/F

8

2 4 5 8+8
Distribution Box BS5DS/F 2 5 6 8+8
Distribution Box BS5DS/F 2 6 7 8+8
Distribution Box BS5DS/F

10

2 6 7 10+10
Distribution Box BS5DS/F 2 7 8 10+10
Distribution Box BS5DS/F 2 8 9 10+10
Distribution Box BS5DS/F

12

2 8 9 12+12
Distribution Box BS5DS/F 2 9 10 12+12
Distribution Box BS5DS/F 2 10 11 12+12
Distribution Box BS5DS/F

15

2 11 12 15+15
Distribution Box BS5DS/F 2 12 13 15+15
Distribution Box BS5DS/F 2 13 14 15+15
Distribution Box BS5DS/F

18

2 14 15 18+18
Distribution Box BS5DS/F 2 15 16 18+18
Distribution Box BS5DS/F 2 16 17 18+18



EBASEE-BS5D-Distribution-Board.pdf
10 MB
Distribution Box BS5D-CE Certificate
