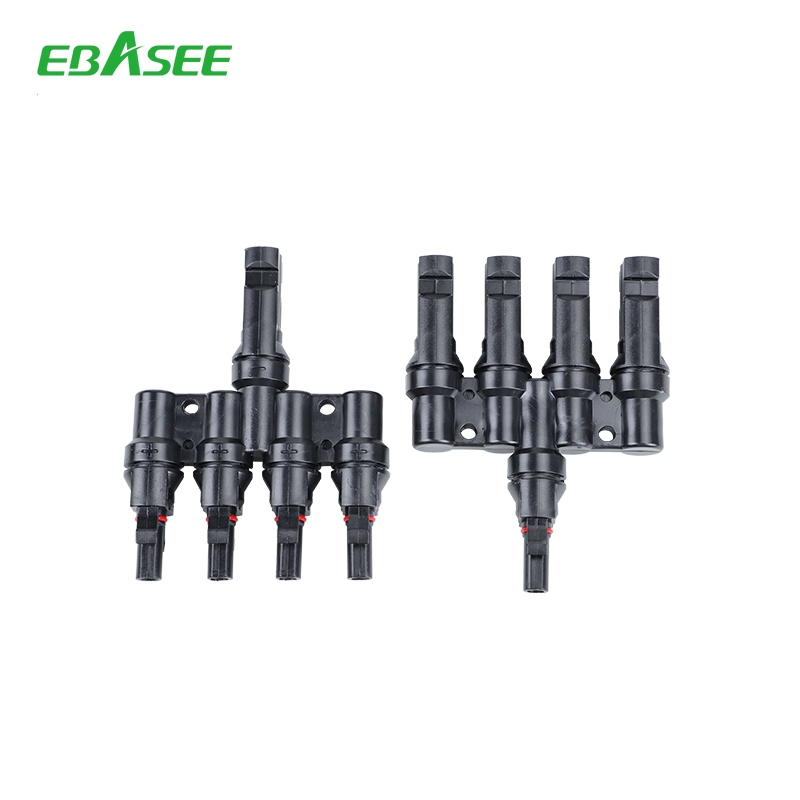

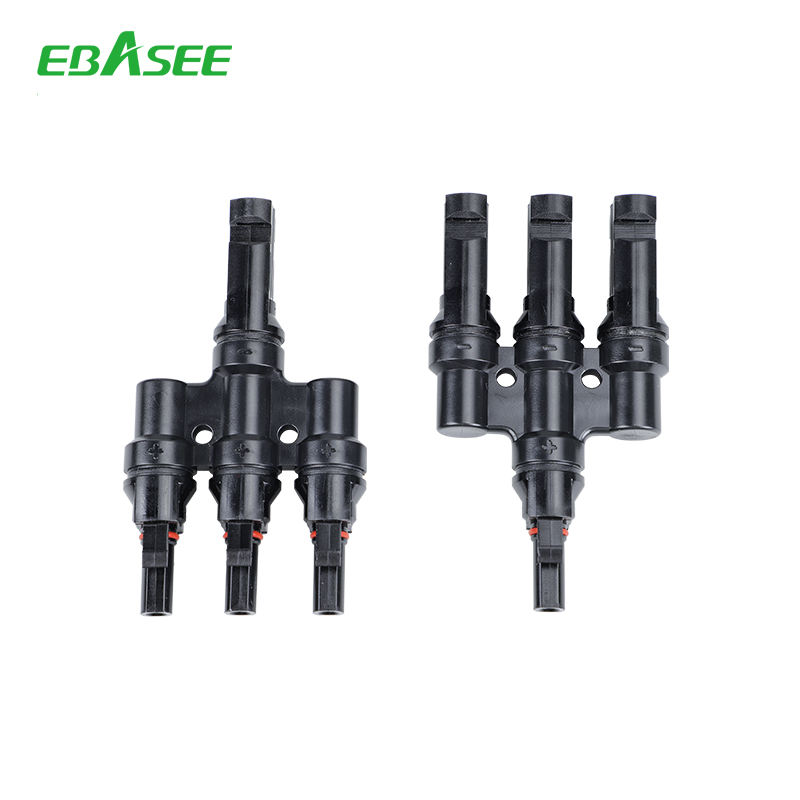

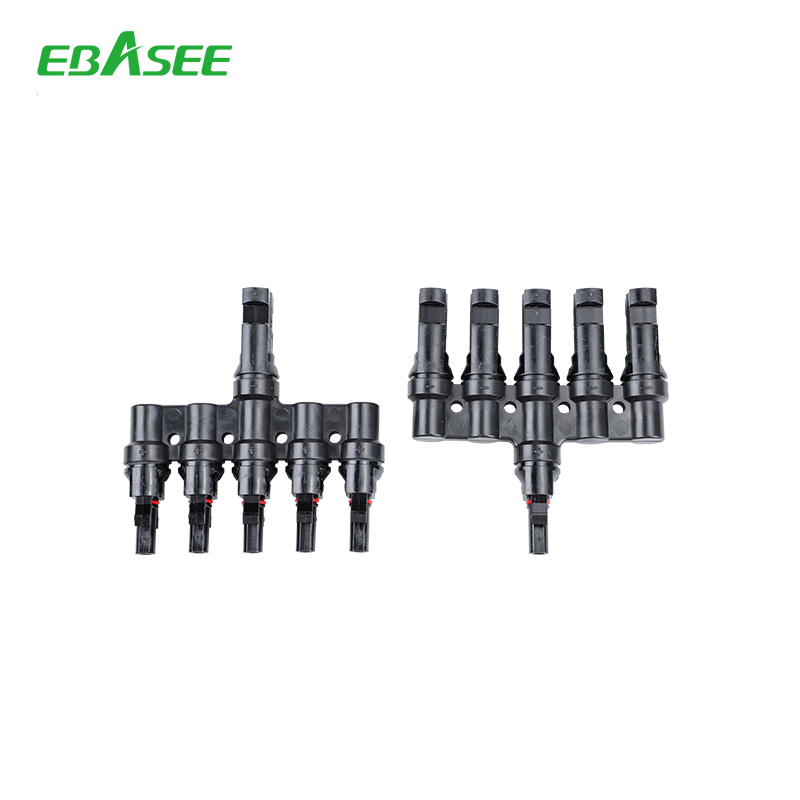

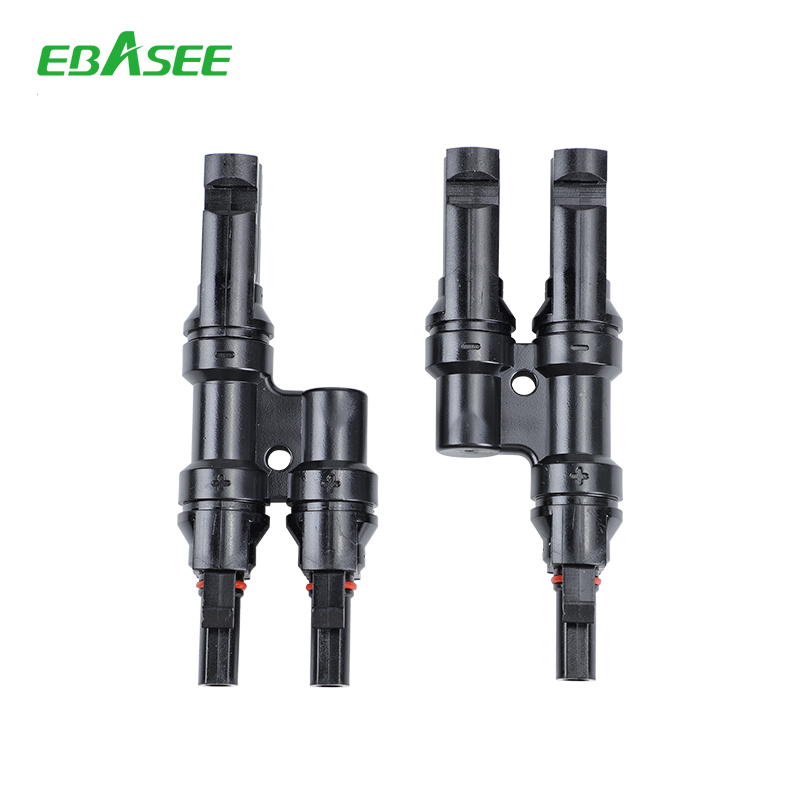

PV-MC4T Photovoltaic DC connector

General

MC4 connector is typically made from copper, with a tin plating to enhance their conductivity and corrosion resistance, it is specialized electrical connectors designed specifically for solar panels, inverters, DC combiner boxes, and other components in a photovoltaic (PV) system. MC4 connectors have become the industry standard due to their reliability, weather resistance, compatibility, cost-effectiveness, and easy installation and maintenance.

Specifications

Insulation Material PPO
Contact Material Copper, Tin plated
Suitable Current 30A
Rated Voltage 1000V DC(TUV) 600V DC(UL)
Test Voltage 6kV(TUV 50Hz, 1min)
Contact Resistance <0.5mΩ
Degree Of Protection IP67
Ambient Temperature Range -40℃~+85℃
Flame Class UL94-V0
Safety class
Pin Dimensions Φ4mm



Dimensions

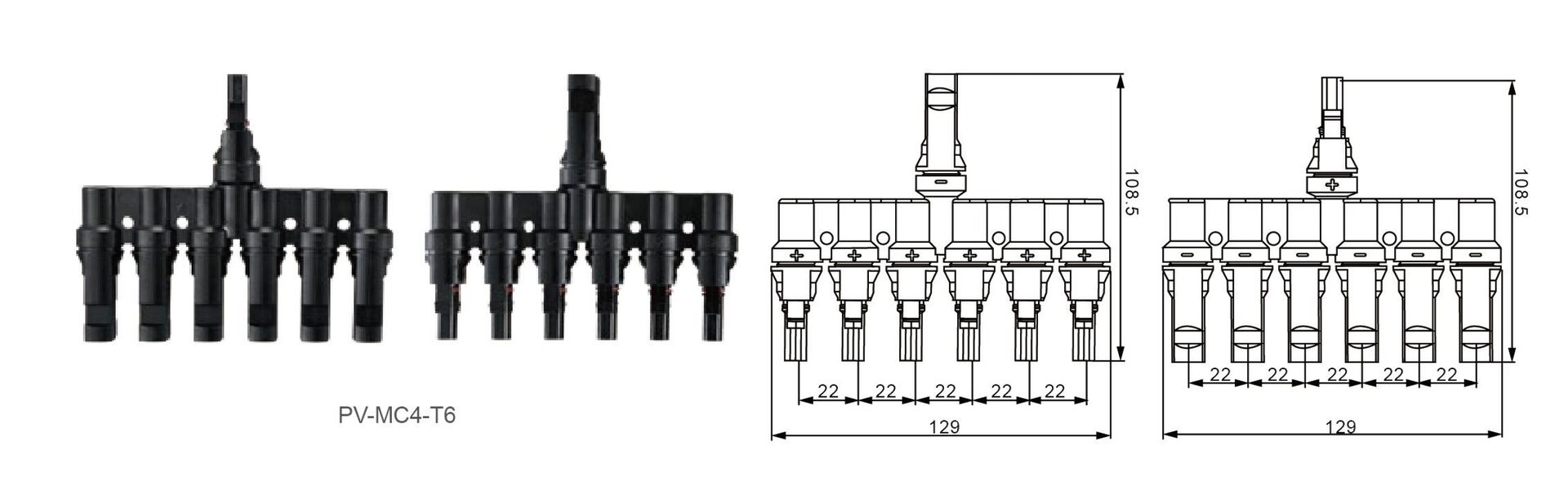

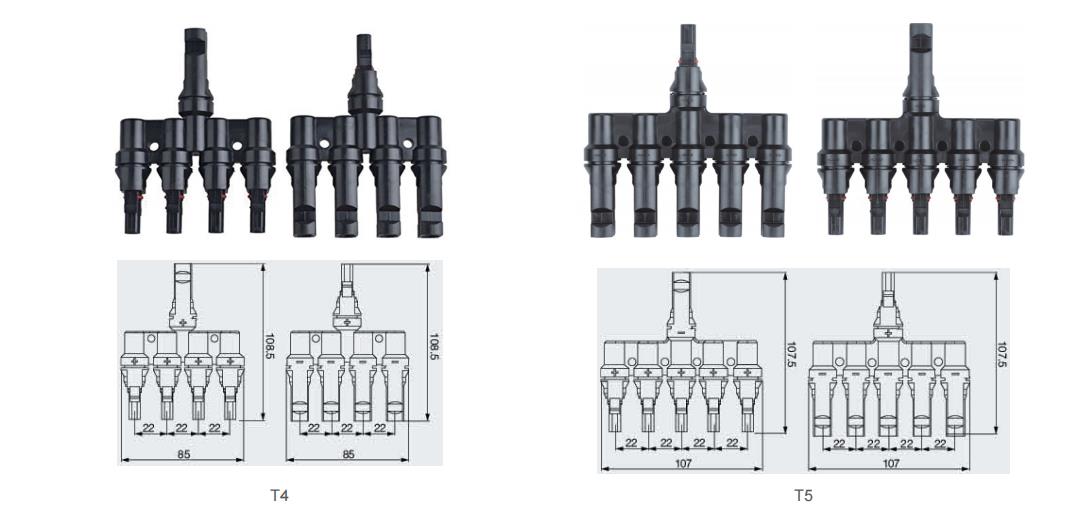

PV-MC4T Photovoltaic DC connector Dimension

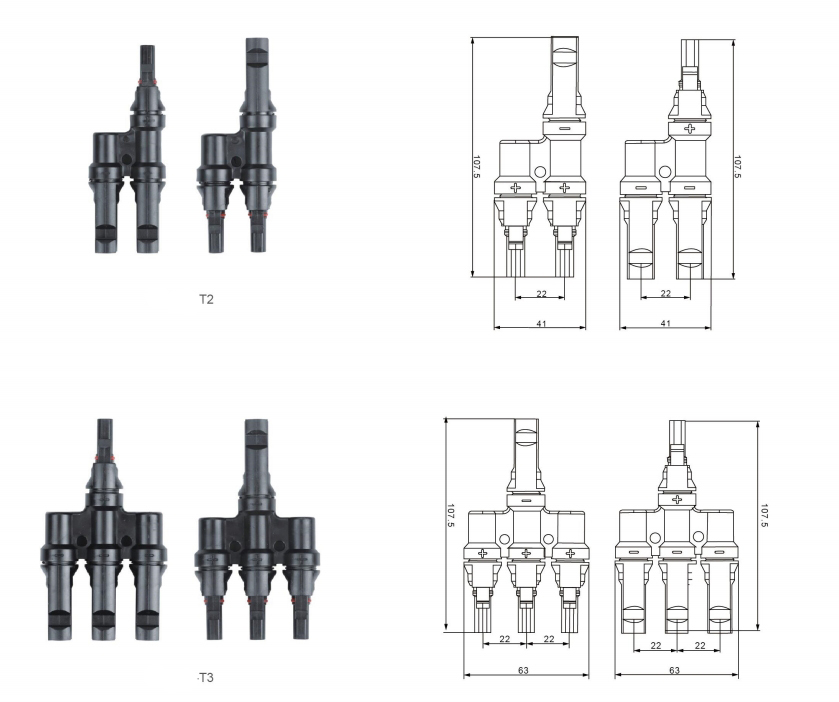

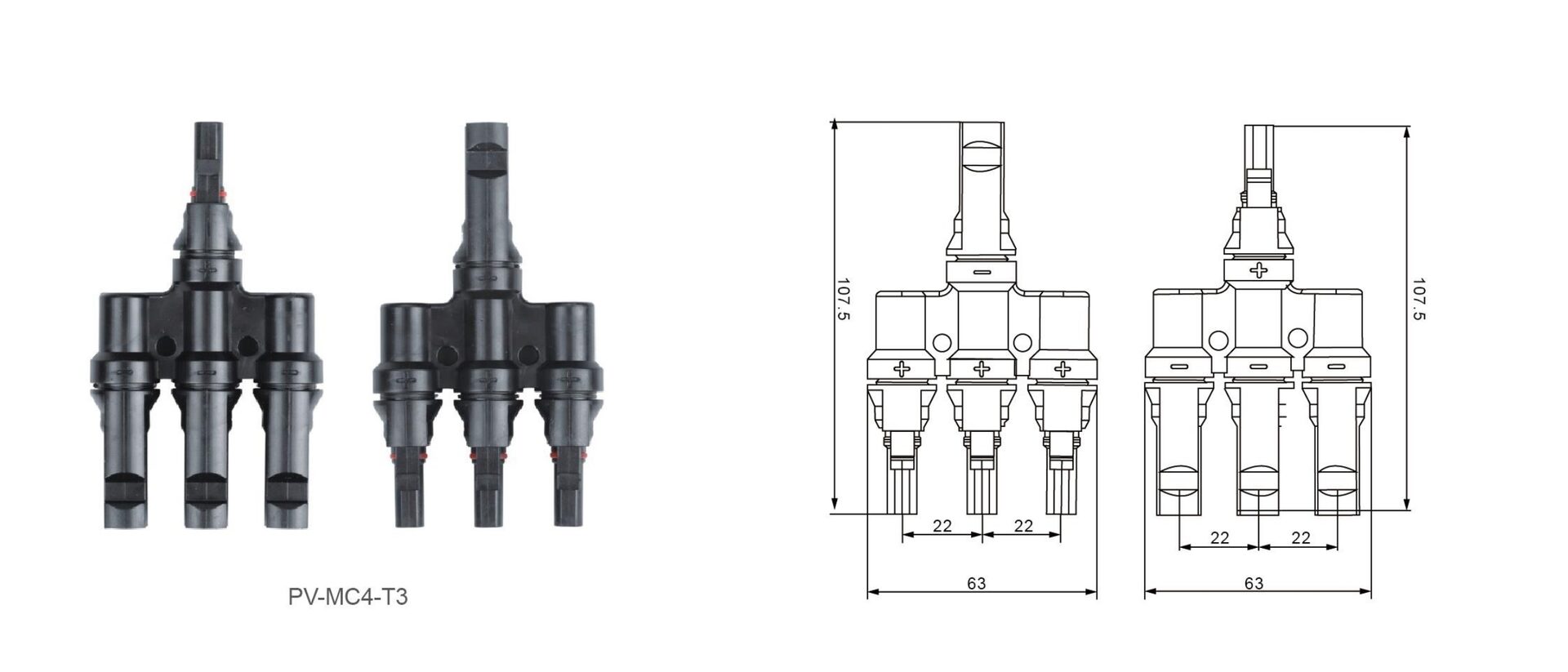

PV-MC4T Photovoltaic DC connector Dimension

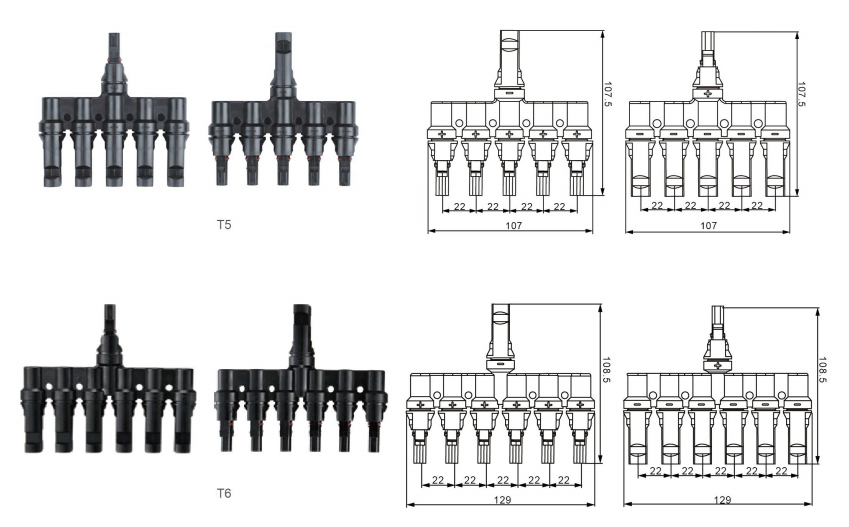

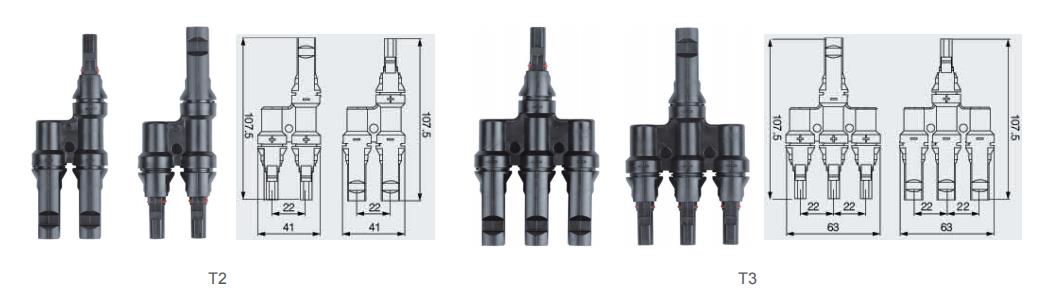

PV-MC4T Photovoltaic DC connector Dimension

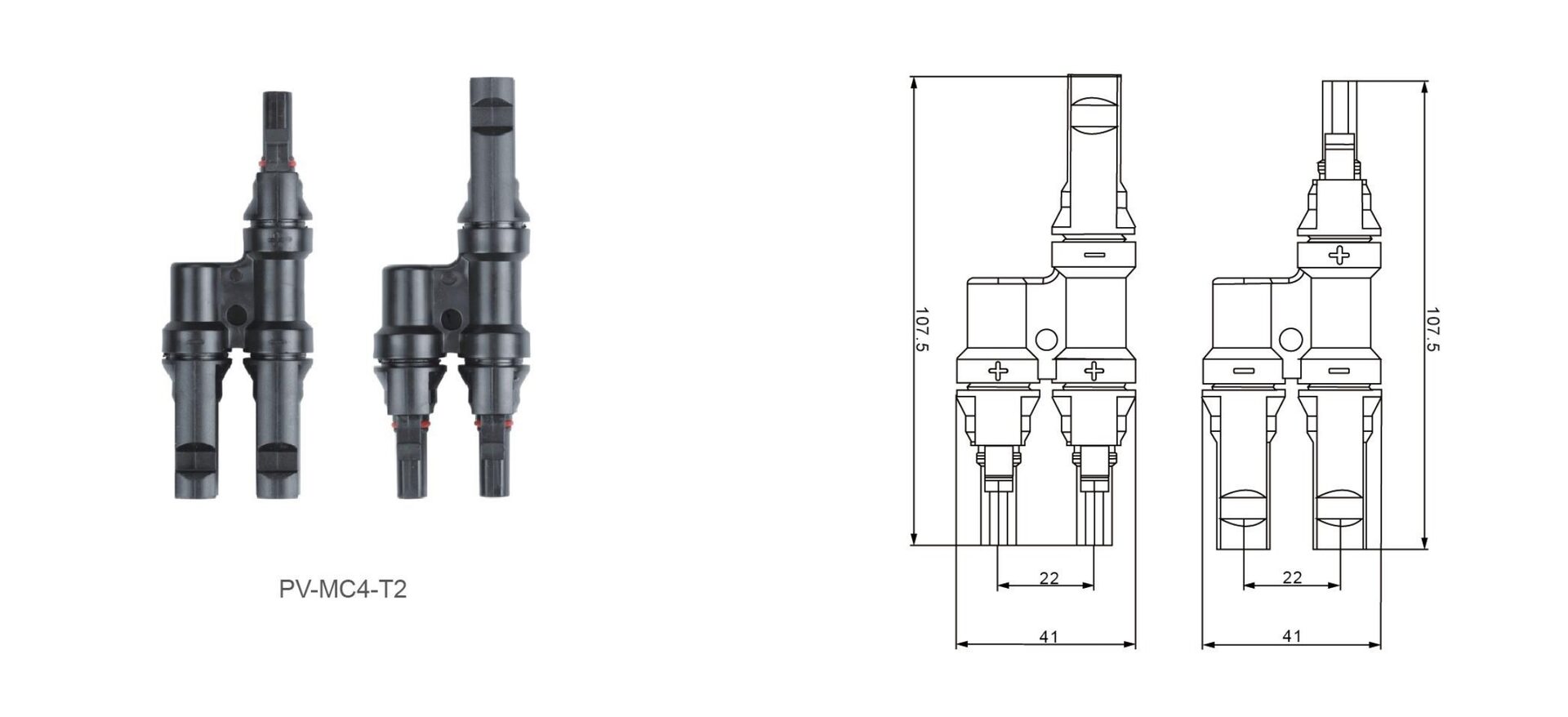

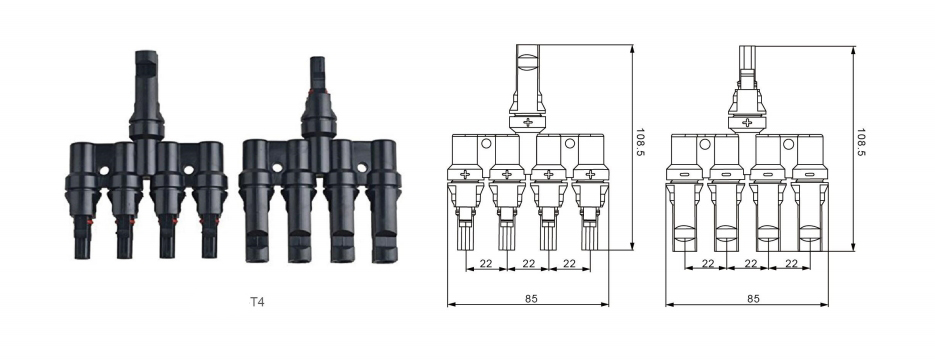

PV-MC4T Photovoltaic DC connector Dimension

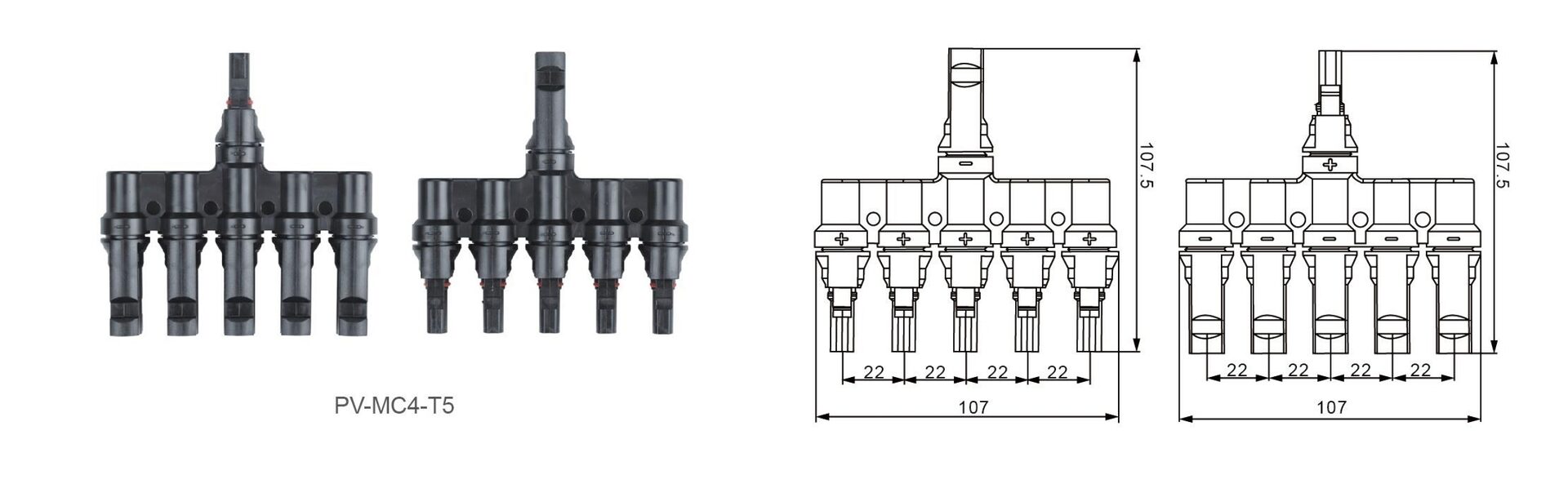

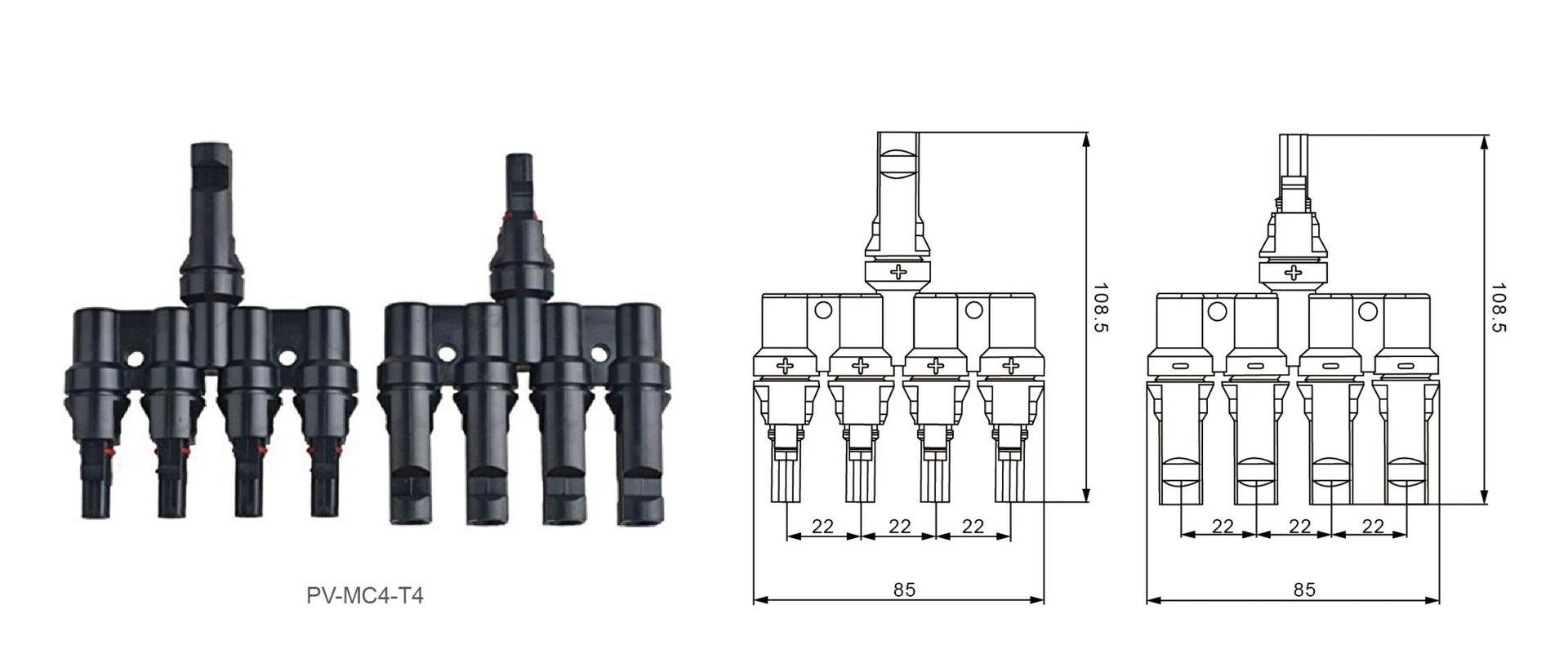

PV-MC4T Photovoltaic DC connector Dimension

EBASEE-MC4-Photovoltaic-DC-Connector-2.pdf
