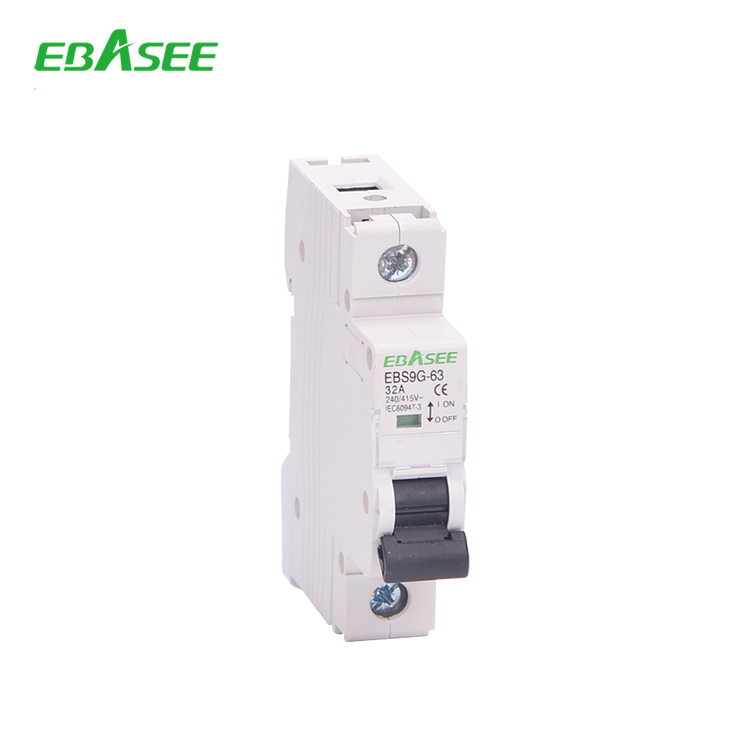

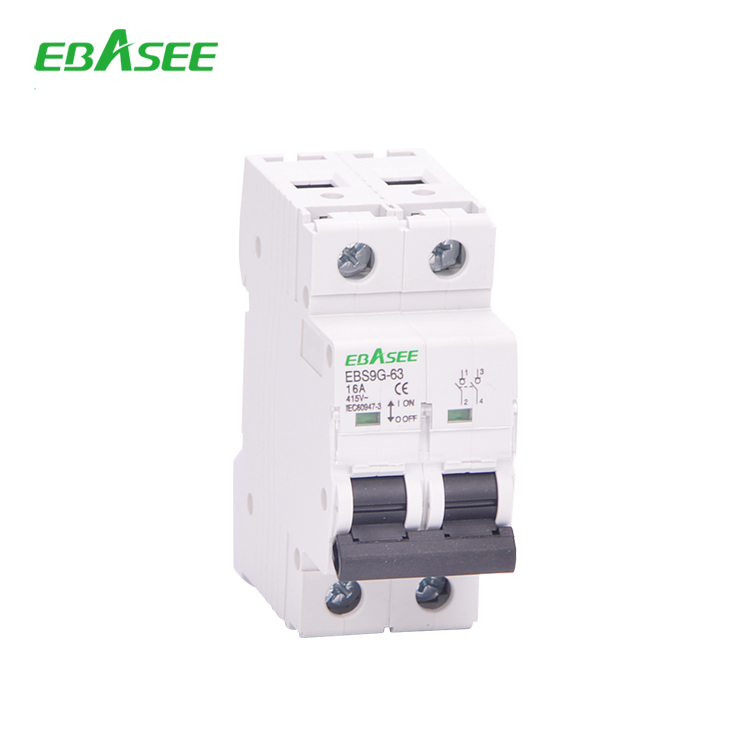

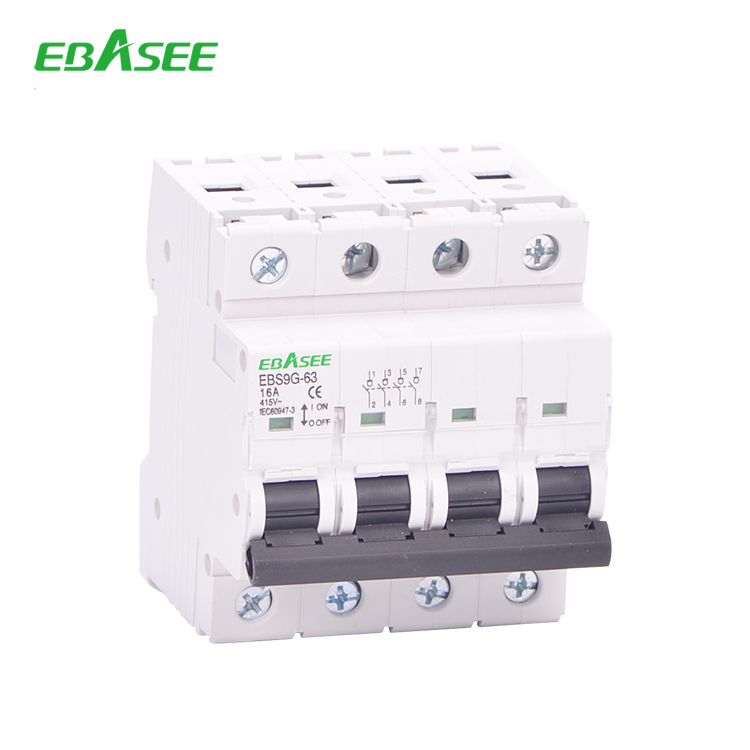

EBS9G-63 Isolating Switch


EBS9G-63 series switch disconnectors are used in AC 50 / 60Hz, rated voltage 400V and below, rated voltage up to 100A power distribution and control circuit, mainly as a terminal combination electric appliance switch, as the line is not frequent conversion.


Type Standard lEC/EN 60947-3






Electrical features

Poles P 1, 2, 3, 4
Rated voltage Ue V 240/415
Rated current ln A 16, 25, 40, 63
Rated frequency Hz 50/60
Rated impulse withstand voltage(1.2/50)Uimp V 4000
Rated short-time withstand current Icw 1kA, 1s
Dielectric test voltage at ind. Freq. for 1min kV 2.0
Insulation voltage Ui V 500
Pollution degree 2


Mechanical features

Electrical life t 4000
Mechanical life t 10000
Protection degree IP20
Ambient temperature

(with daily average≤35℃)





Terminal size top / bottom for cable and pin-type busbar mm² 25
AWG 18-3
