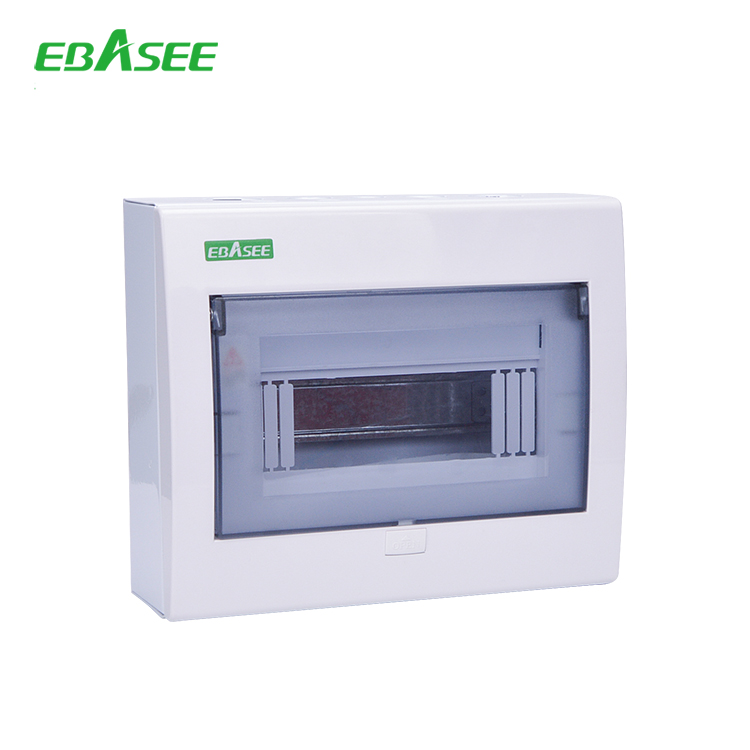

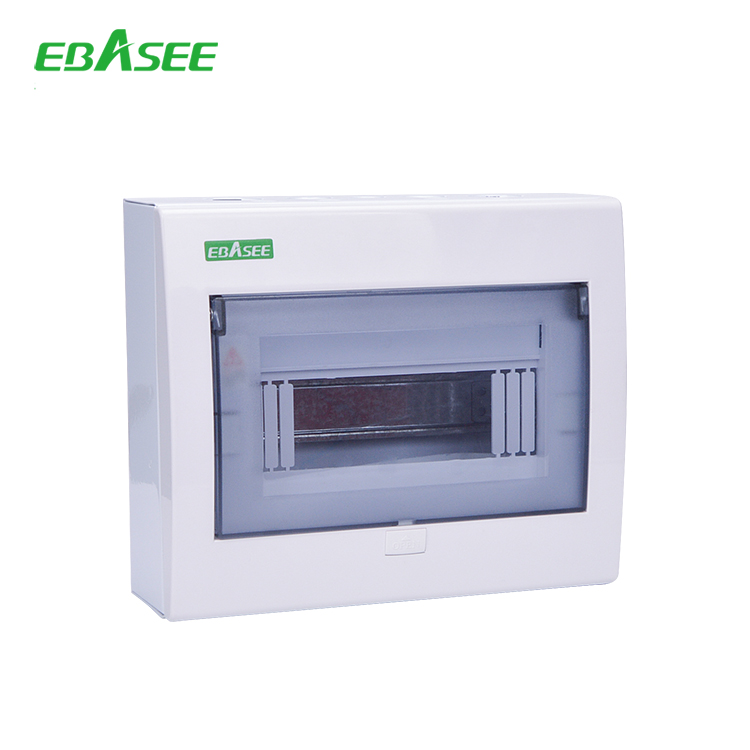

EBS7DP Distribution Box Consumer Units


EBS7DP Series distribution box used in distribution, control circuit and also provide protection of overload,short-circuit and leakage.Widely used in hotel,construction,enterprises, buildings and hosipital ect indoor installation.It divdie into surface mounted installation and flush mounted installation.
It is with plastic panel and plastic bottom, up-down pushbutton auto-opening type. The din-rail cannot be adjustable.


Model Flush Mounted Specifications(mm)
4loop 120×140×80
7loop 190×185×80
10loop 235×185×80
13loop 302×185×80
15loop 340×185×80
18loop 391×185×80
20loop 430×213×80


Model Flush Mounted Specifications(mm)
4loop 120×160×85
7loop 180×200×85
10loop 235×200×85
13loop 295×200×85
15loop 333×200×85
18loop 386×200×85
20loop 425×200×85
