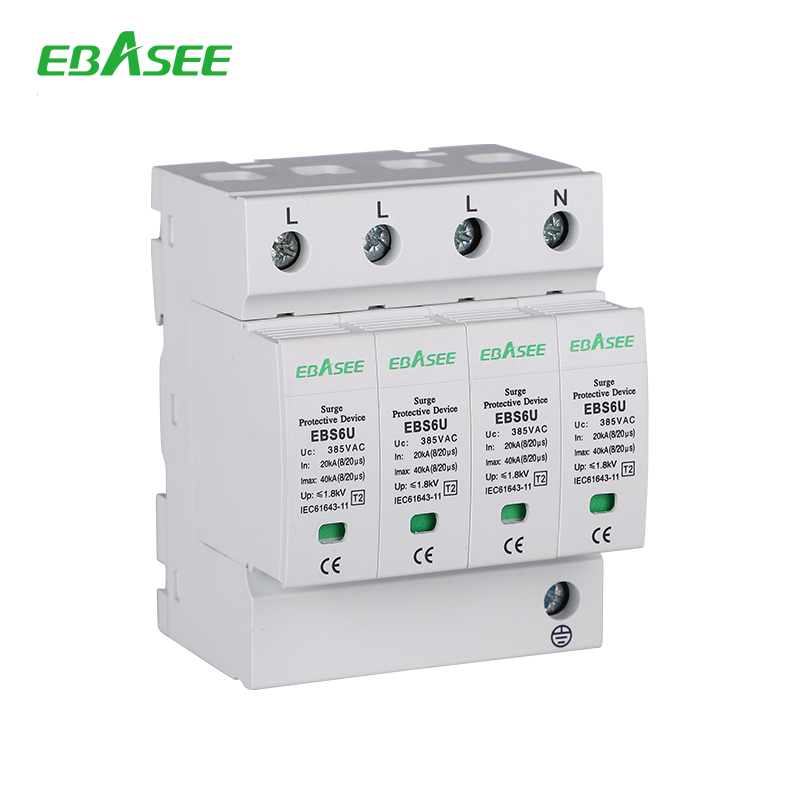

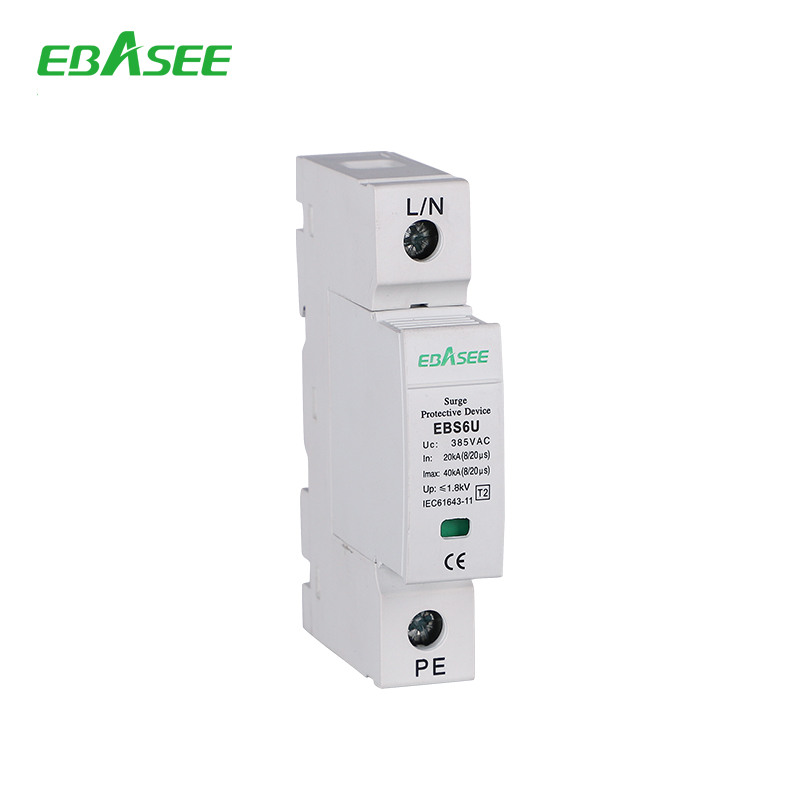

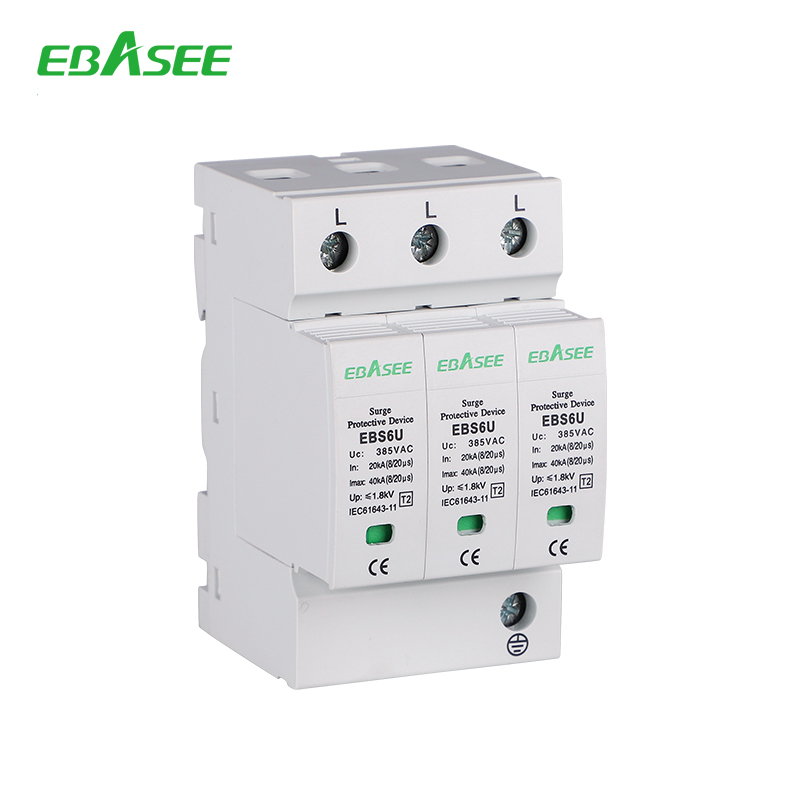

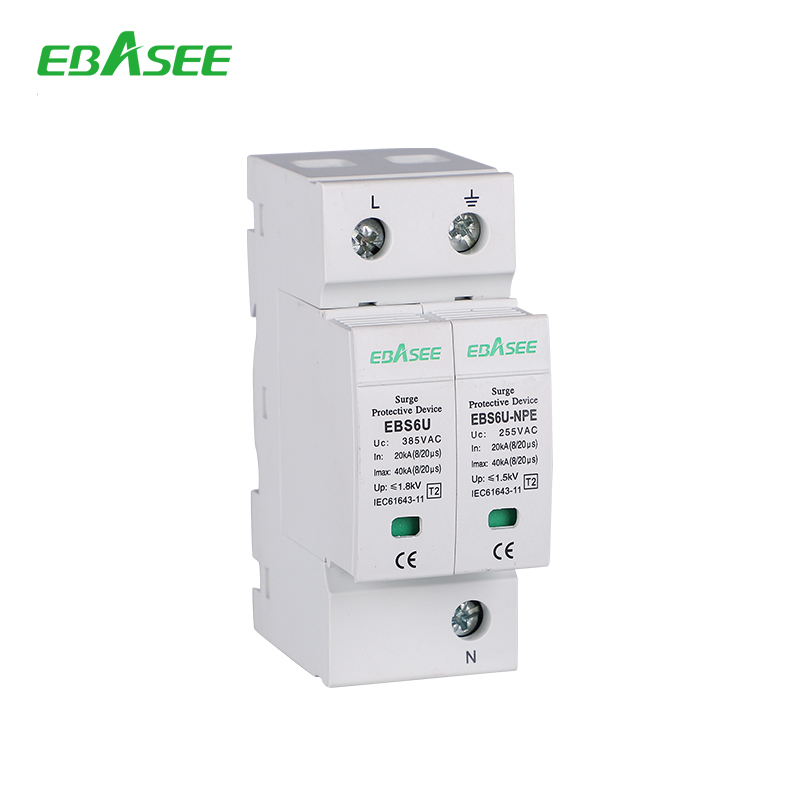

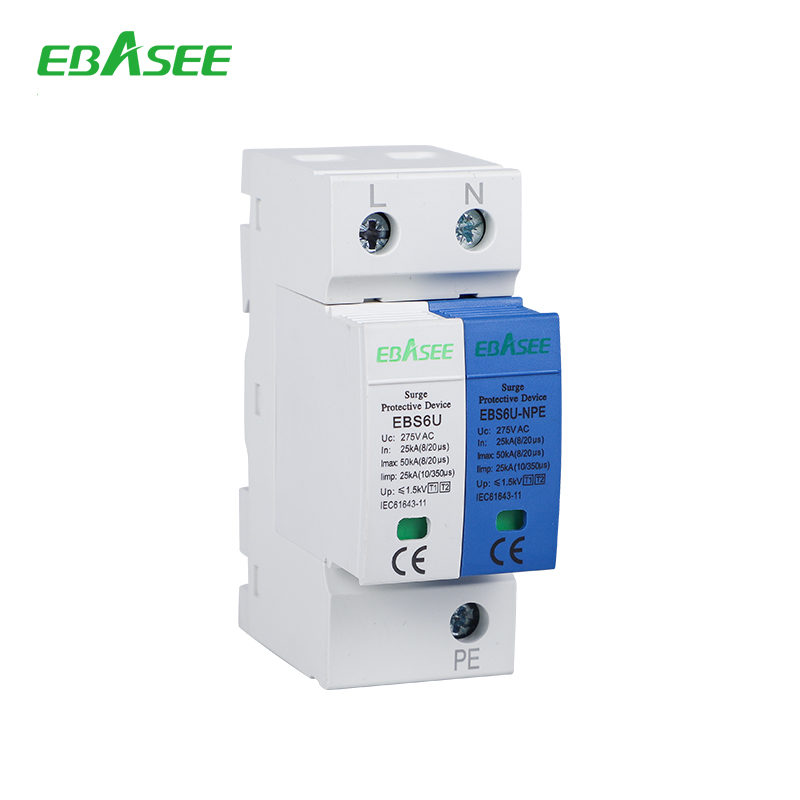

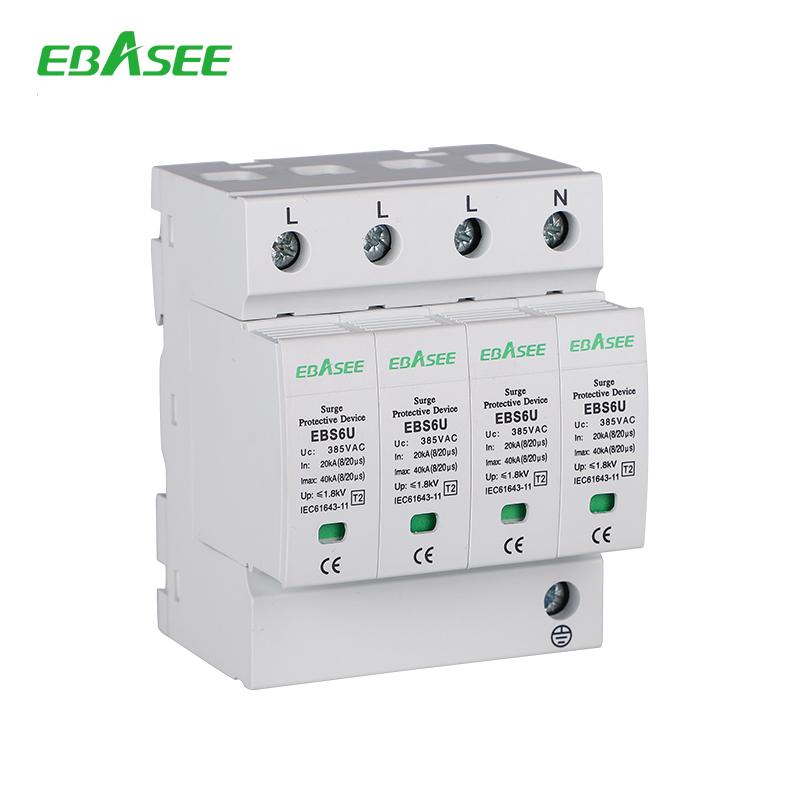

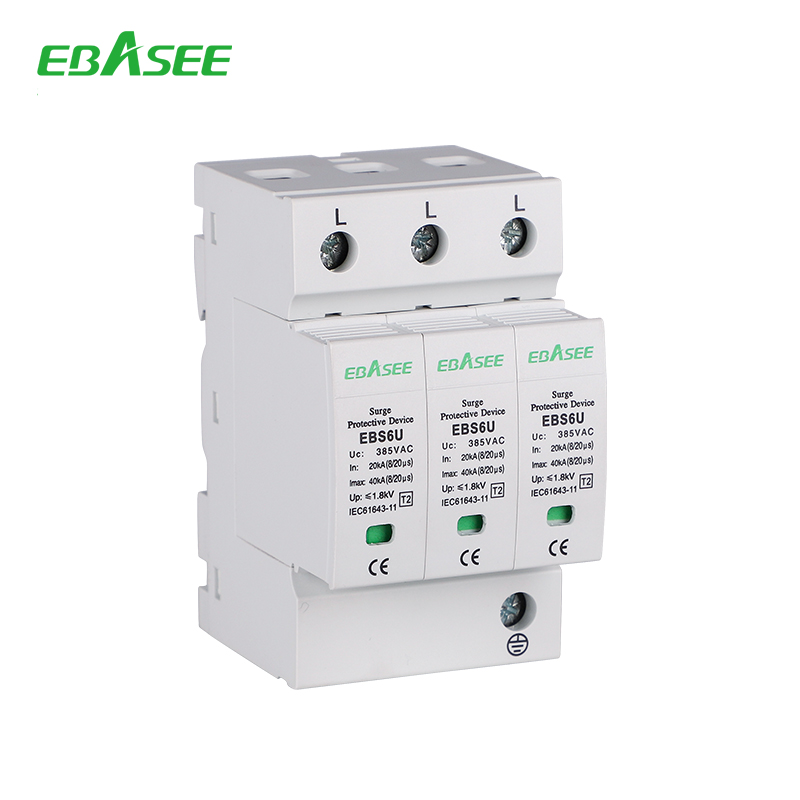

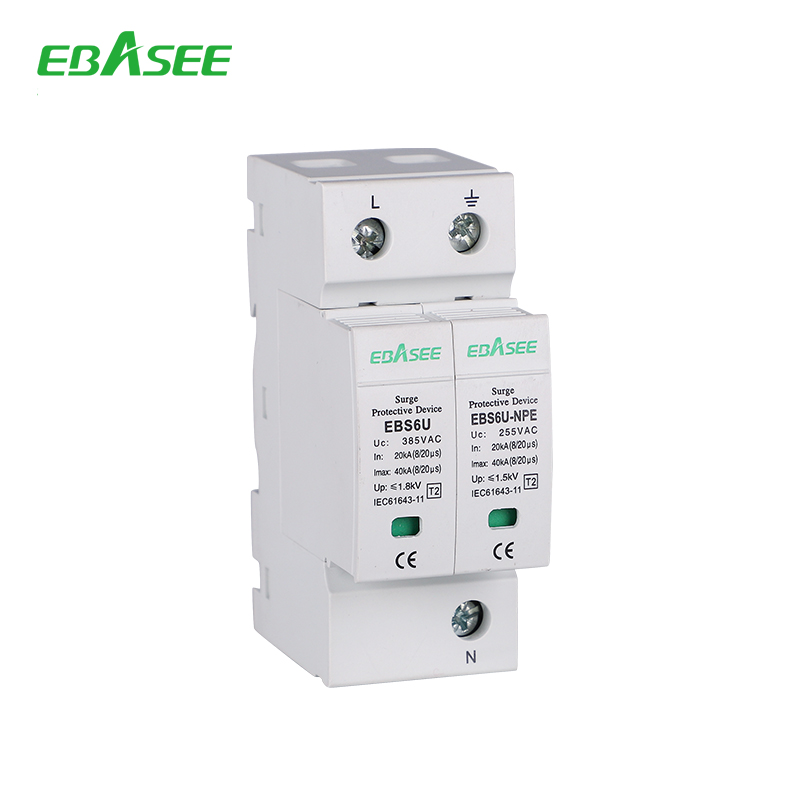

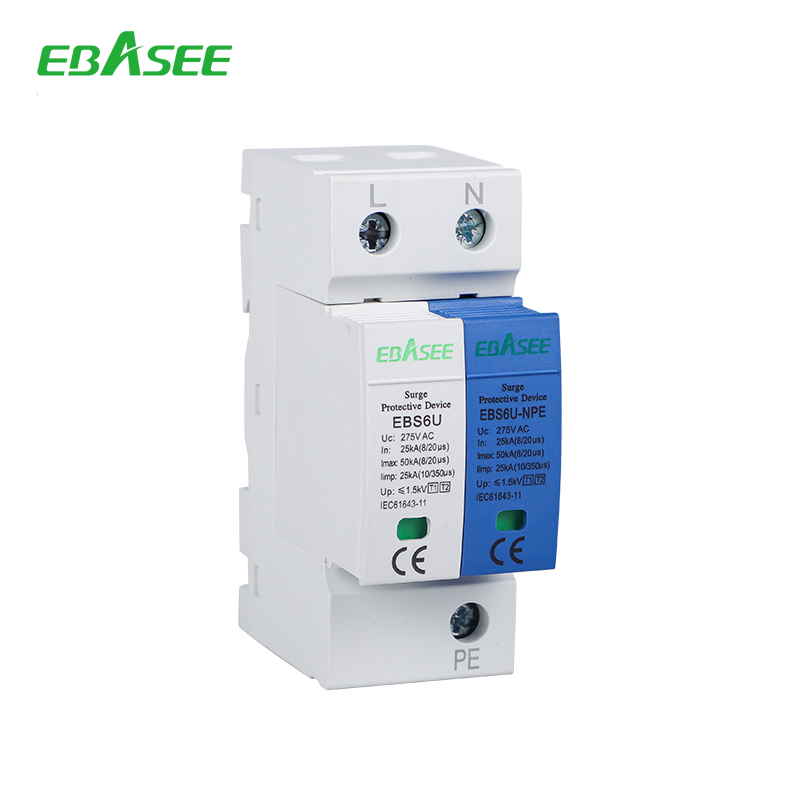

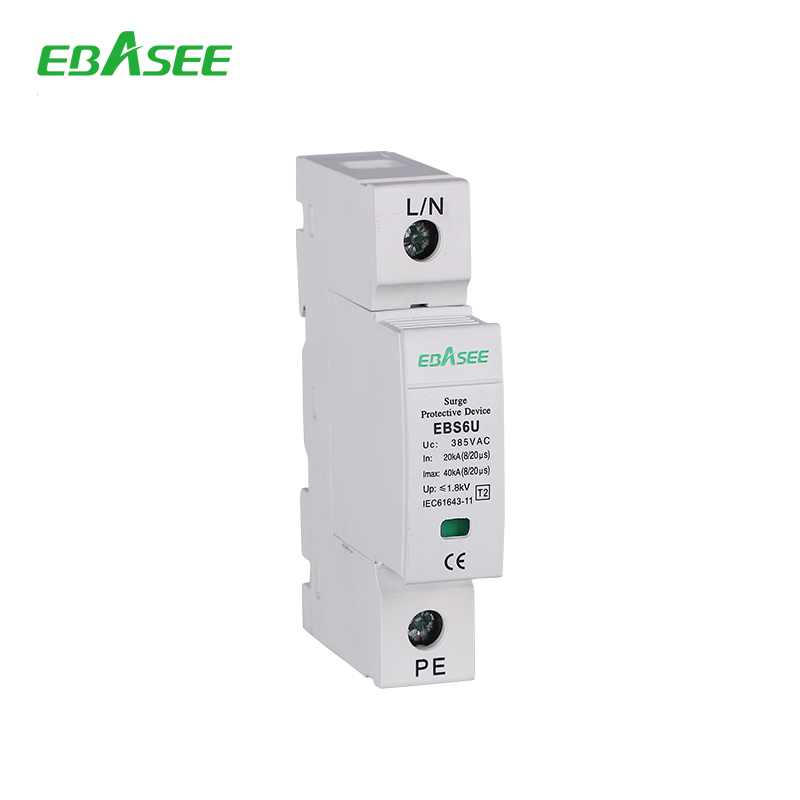

EBS6U Surge Protector

Product Category

Modular Din Rail Products 
Moulded Case Circuit Breaker 
- Air Circuit Breaker
- Moulded Case Circuit Breaker (MCCB)
- Automatic Transfer Switch Series
Control Electric 
- AC Contactors
- Thermal Relay
- Switched Capacitor
- DOL Starter
- Motor Protector
- AC Fuse
- Time Relay
- Universal Changover Switch
- Pushbutton Switch & Indicator
Solar Energy System 
- DC Moulded Case Circuit Breaker
- DC MCB
- DC Surge Protector Devices
- DC Fuse
- DC Isolator Switch
- DC Combiner Box
- Photovoltaic DC Connector
- Electric Vehicle Charging Box

Whatsapp
Leave Message

Overview Catalog Certificate Manual

Function

EBS3U Series Surge protector device(hereinafter referred to as SPD) is used for power supply systems such as IT, TT, TN-C, TN-S, TN-CS, etc. for low-voltage AC distribution systems, for indirect lightning and direct lightning or other A surge of transient overvoltage is protected. The SPD has a common mode(MC) and differential mode(MD) protection. The SPD complies with GB/T18802.1/IEC61643-II.

Specifications

Standard		EBS6U
According to IEC61643-11		T2
Max. continous operation AC voltage	Uc	275V AC(Can be customized)
Norminal discharge current（8/20μs）	In	20kA
Maximum discharge current (8/20μs)	Imax	40kA
Peak current（10/350）	Ipeak	/
Voltage protection level (L-N)	Up	1.5kV
Response time (L-N)	tA	25ns
Environment temperature	Tu	-40℃~80℃
Status indicator		Green / red
Mounting		36mm Standard Guide
Cross section of wire (Min.)	mm²	2.5mm²
Cross section of wire (Max.)	mm²	35mm²
Casing material		Thermoplastic UL94-V0
Degree of protection		IP20
Remote Signalling		Optional
Poles		1P 1P+N 2P 2P+N 3P 3P+N 4P
