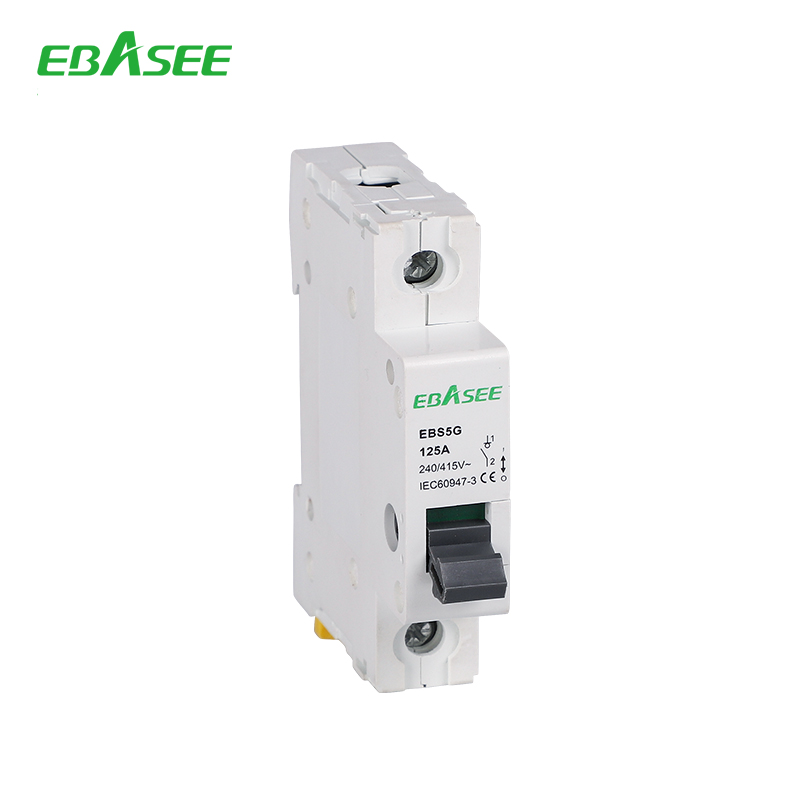

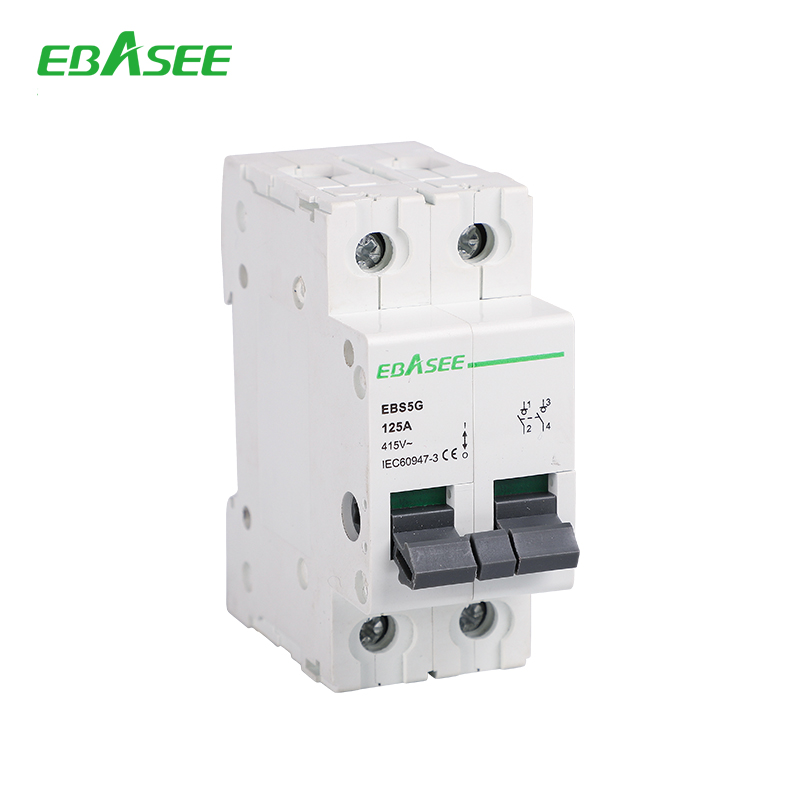

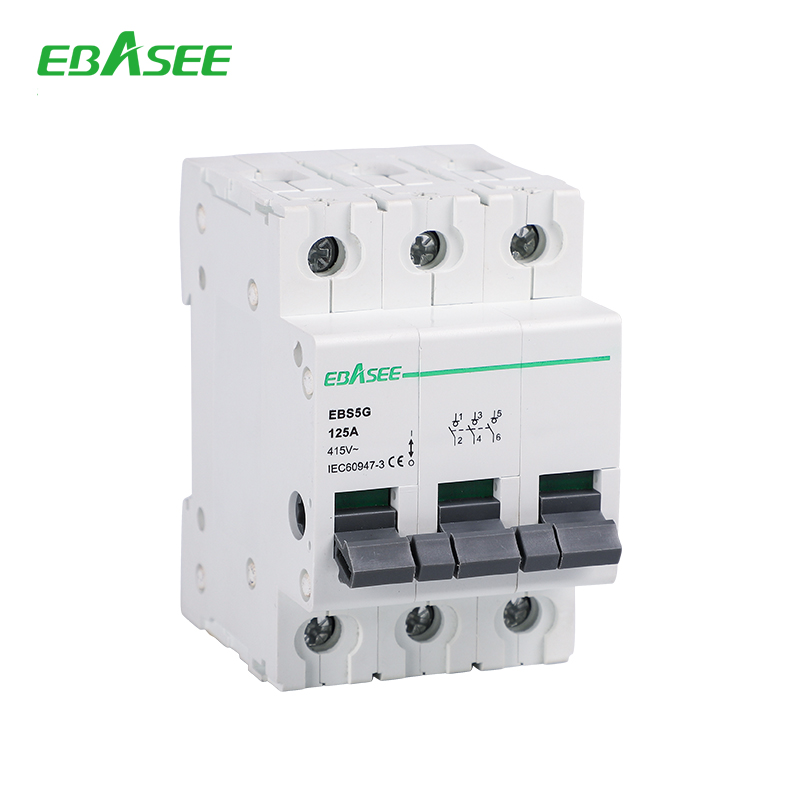

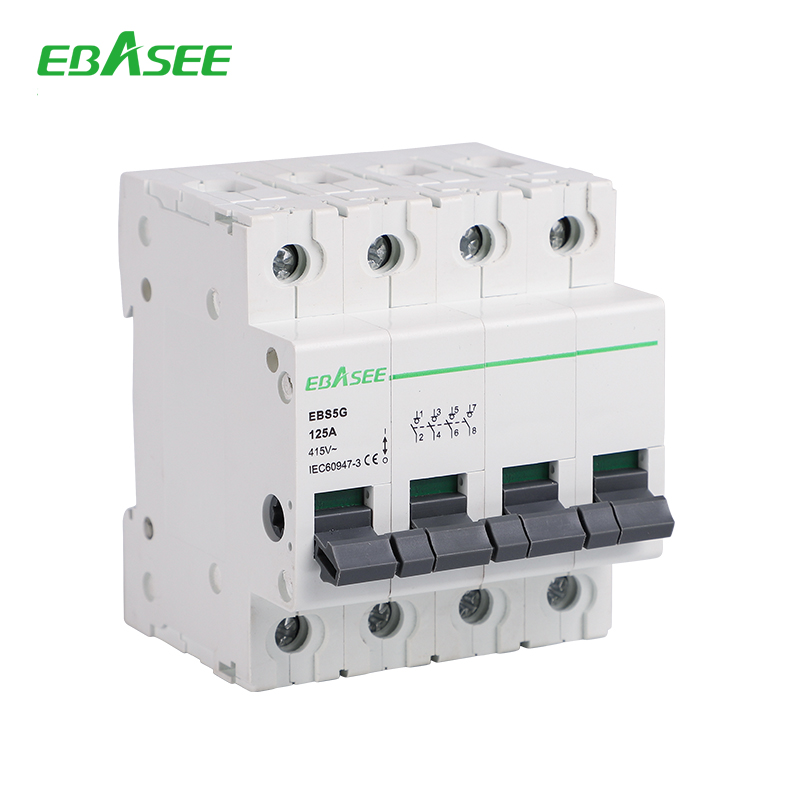

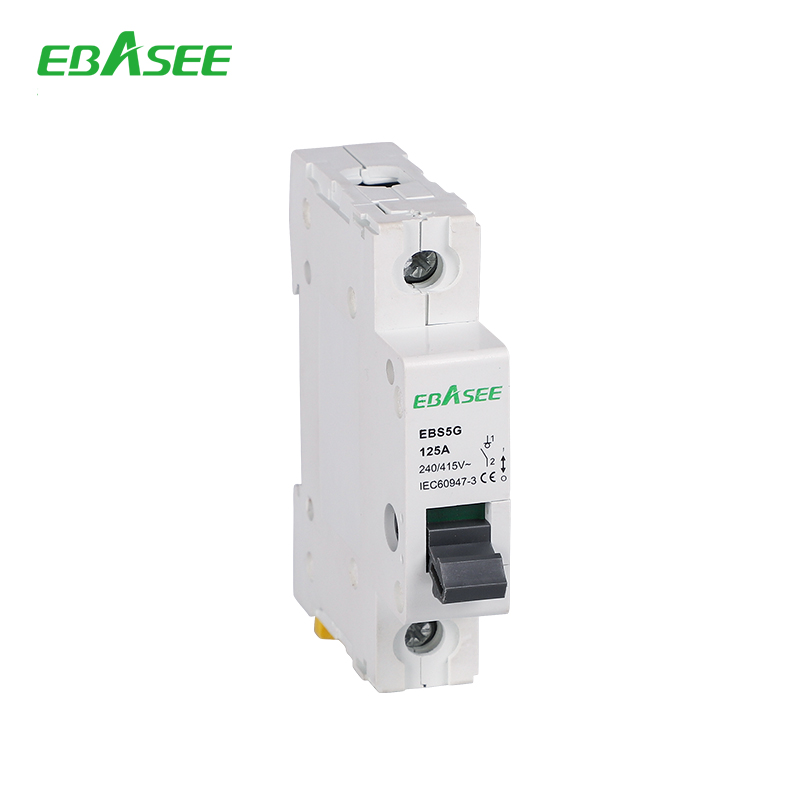

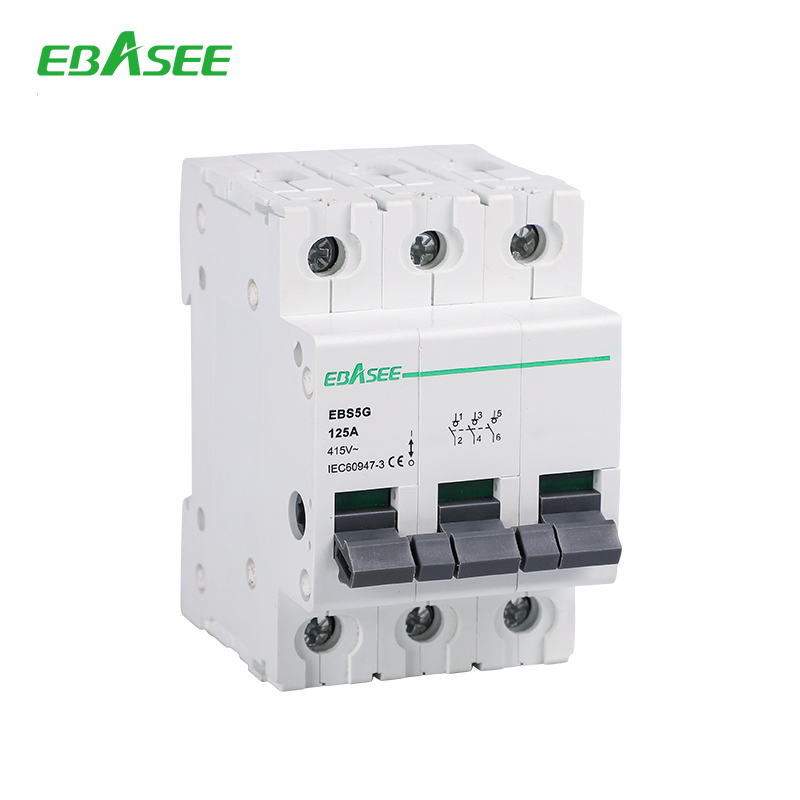

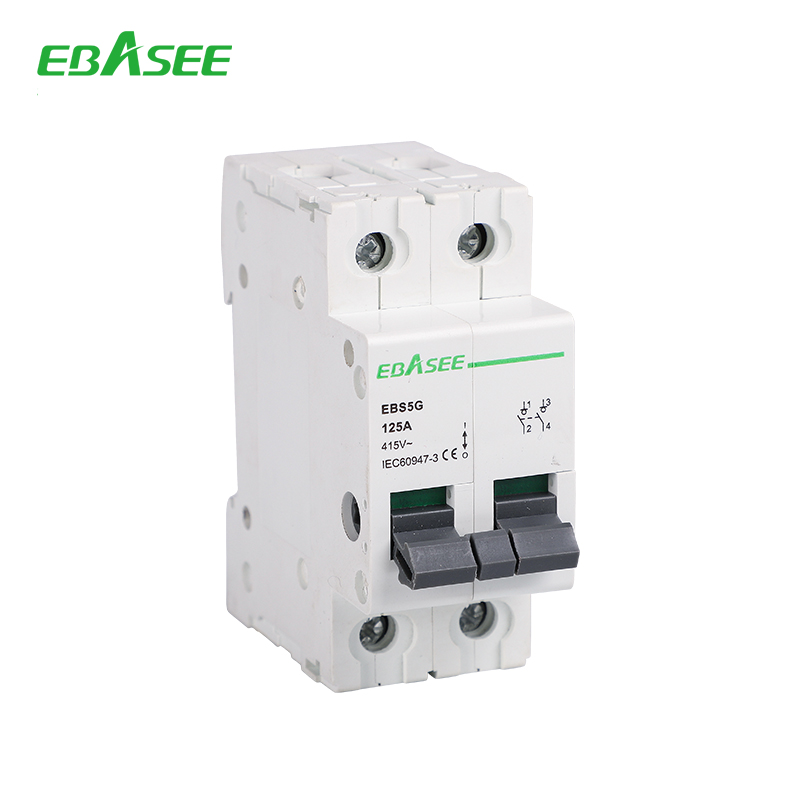

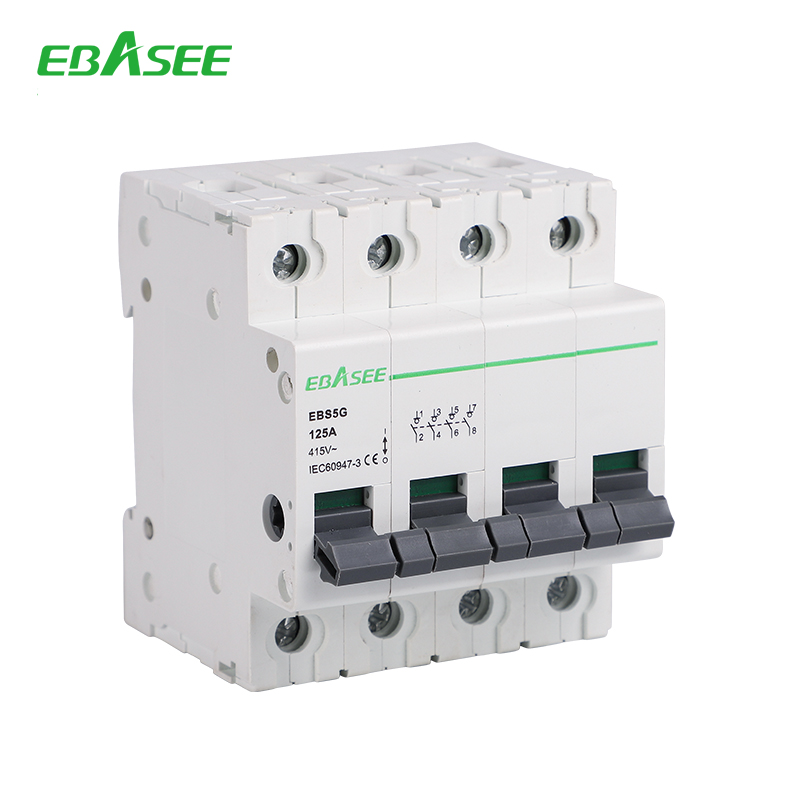

EBS5G Isolating Switch

Function

EBS5G series switch disconnectors are used in AC 50 / 60Hz, rated voltage 400V and below, rated voltage up to 100A power distribution and control circuit, mainly as a terminal combination electric appliance switch, as the line is not frequent conversion.

Specifications

Type Standard lEC/EN 60947-3












Electrical features

Poles P 1, 2, 3, 4
Rated voltage Ue V 240/415
Rated current ln A 32, 40, 63, 80, 100, 125
Rated frequency Hz 50/60
Rated impulse withstand voltage(1.2/50)Uimp V 4000
Rated short-time withstand current Icw 12Ie, 1s
Rated making and breaking capacity 3Ie, 1.05Ue, cosΦ=0.65
Rated short circuit making capacity 20Ie, t=0.1s
Dielectric test voltage at ind. Freq. for 1min kV 2.5
Insulation voltage Ui V 500
Pollution degree 2




Mechanical features

Electrical life t 1500
Mechanical life t 8500
Protection degree IP20
Ambient temperature

(with daily average≤35℃)



-5~+40



Installation

Terminal size top / bottom for cable and pin-type busbar mm² 35
AWG 18-1/0



Dimensions

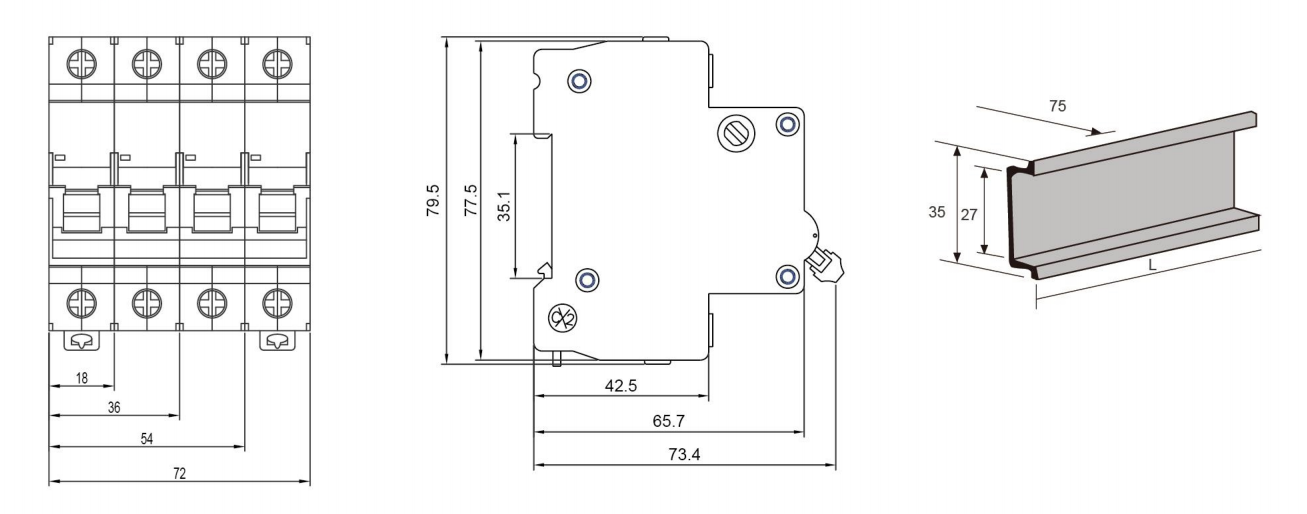

EBS5G Isolating Switch Dimensions

EBASEE-EBS5G-Isolator.pdf
6 MB
Isolating Switch EBS5G -CE Certificate
Isolating Switch EBS1G EBS5G EBS9G-ROHS Certificate
