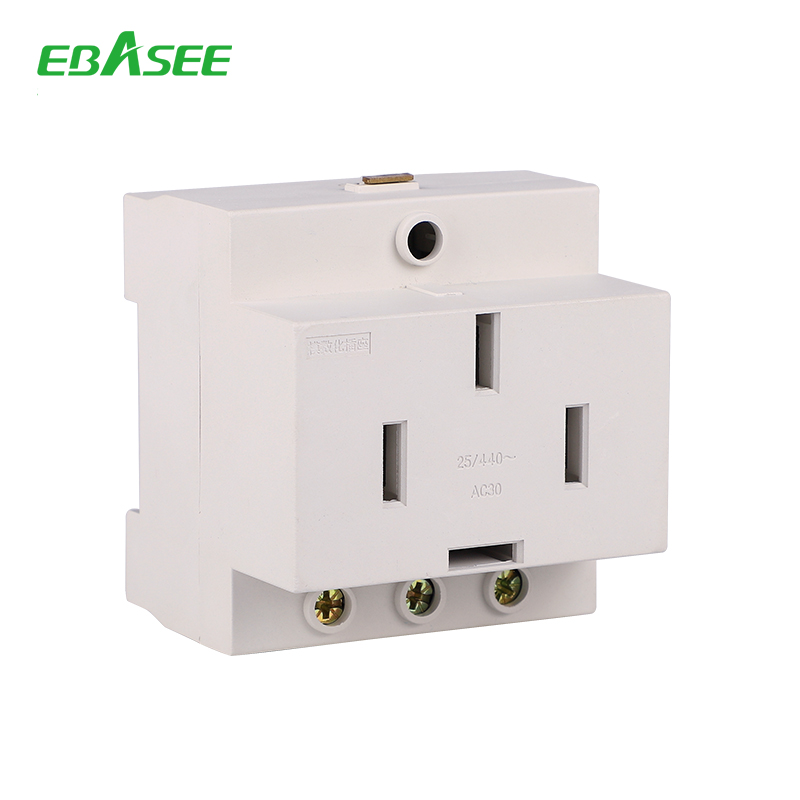

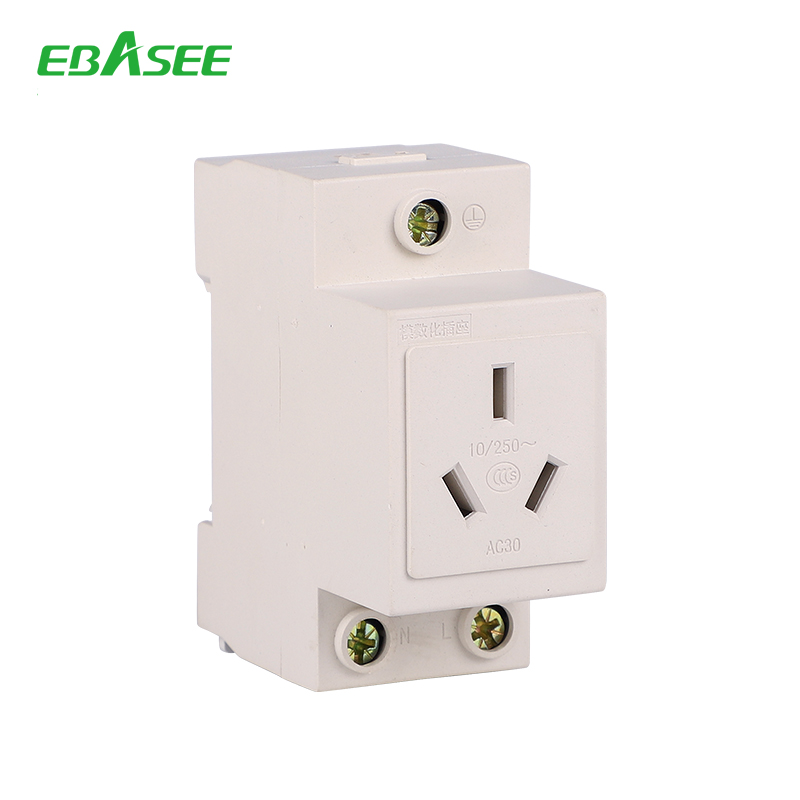

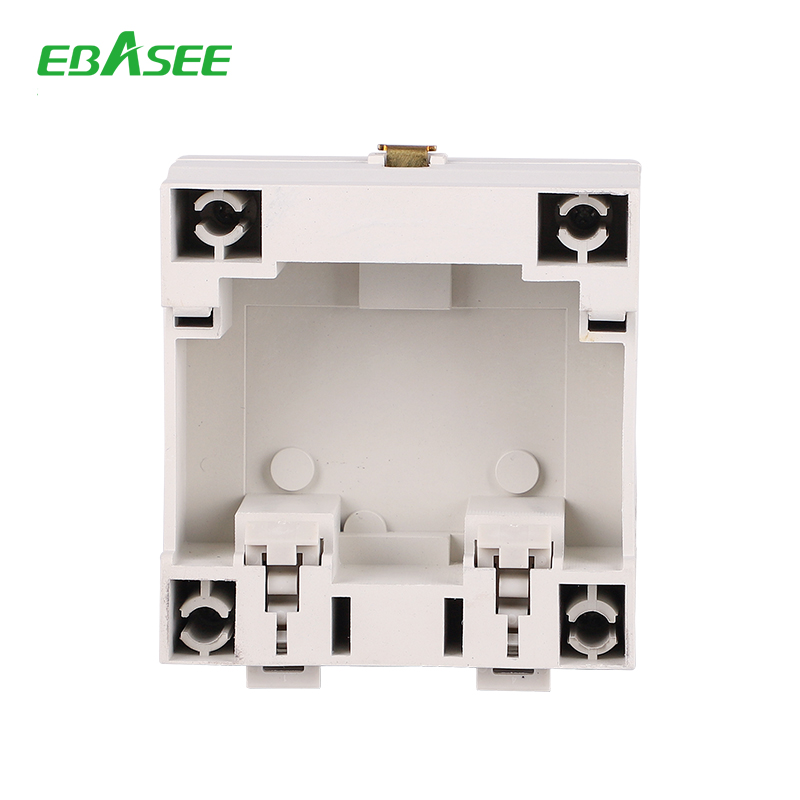

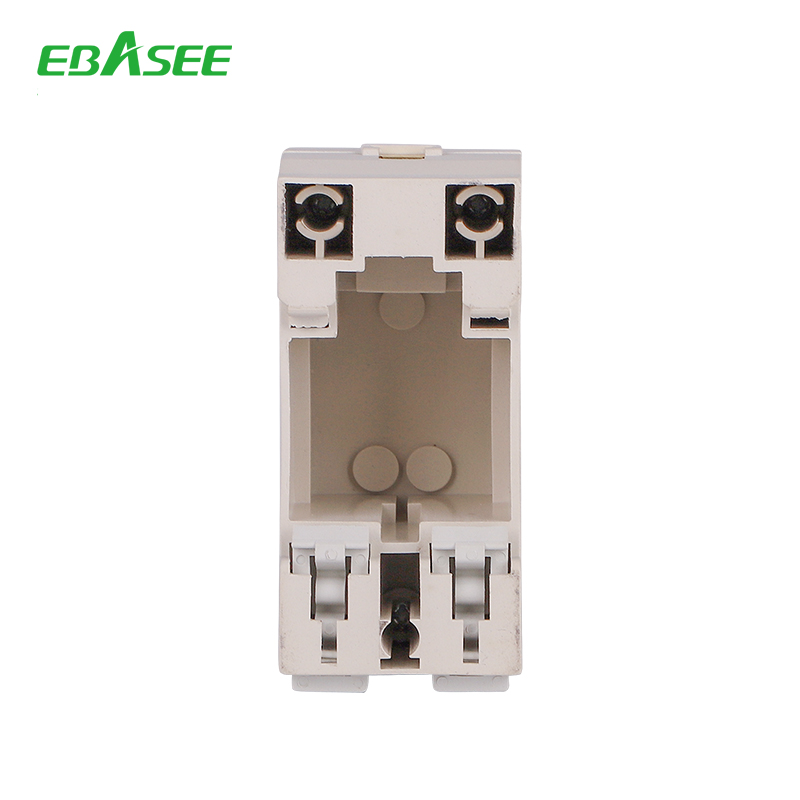

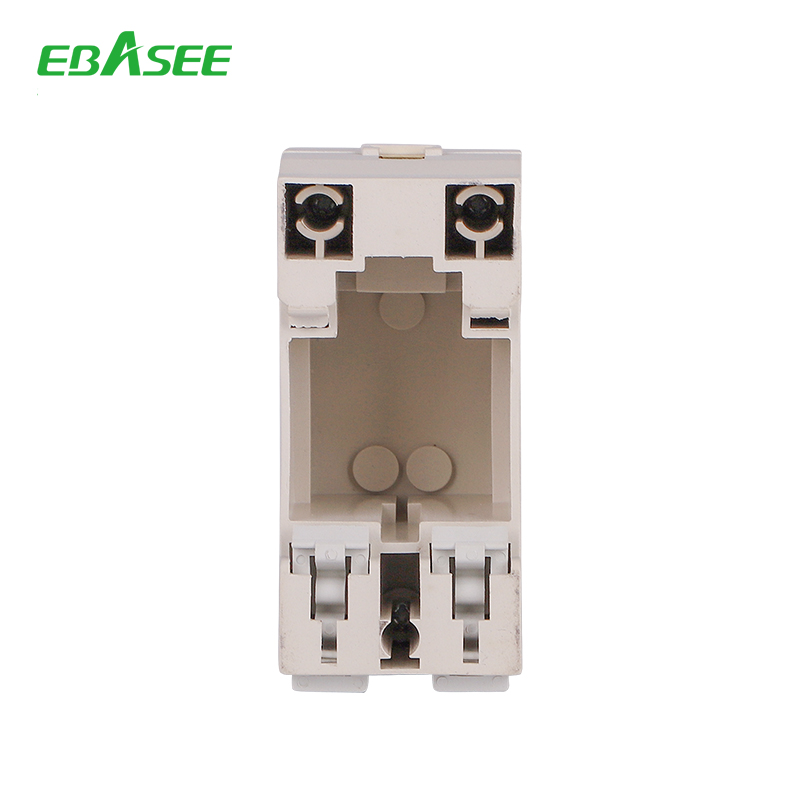

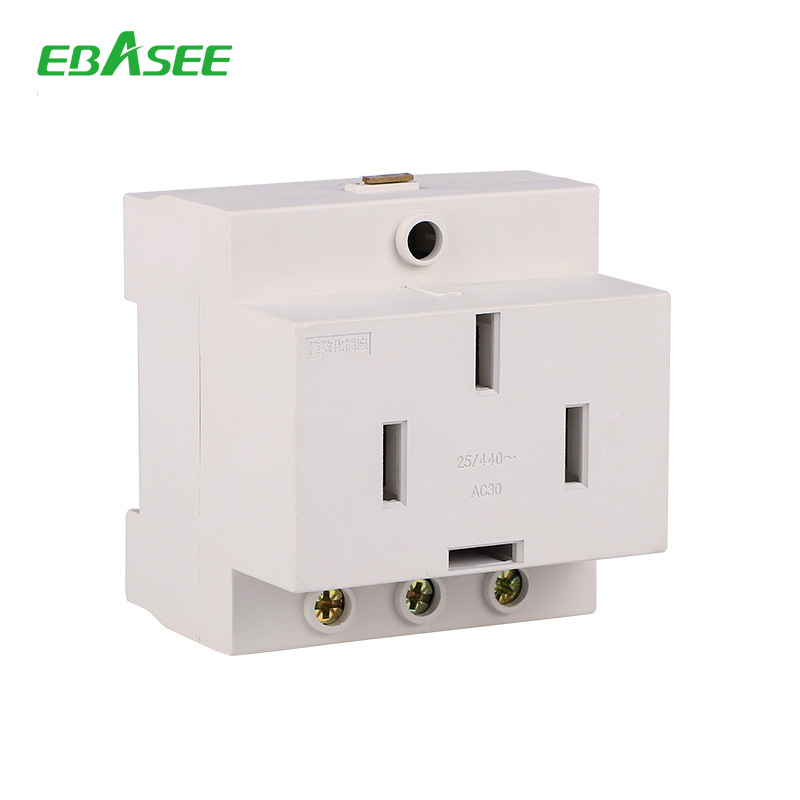

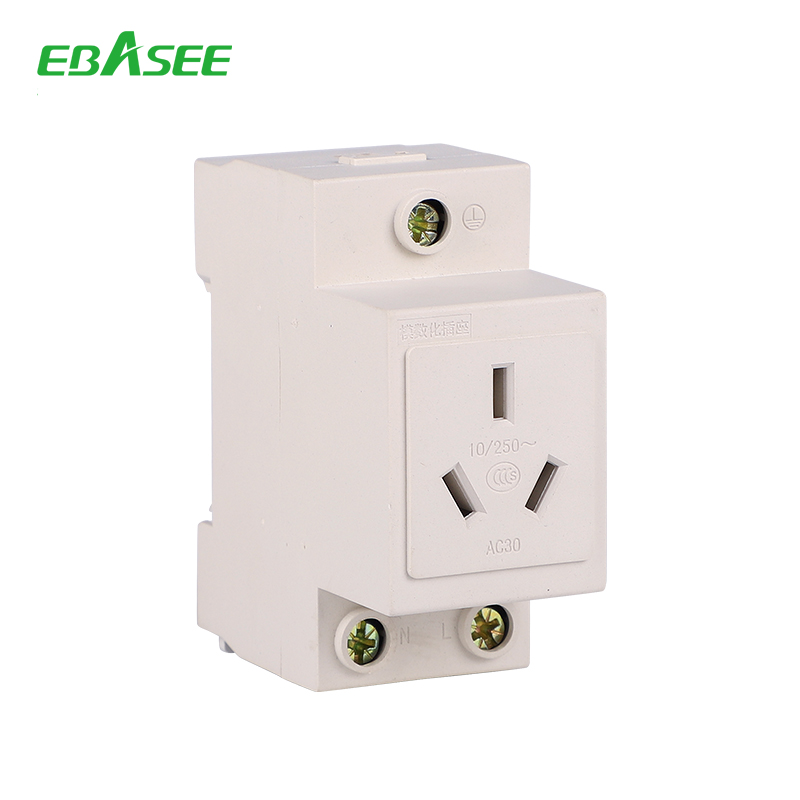

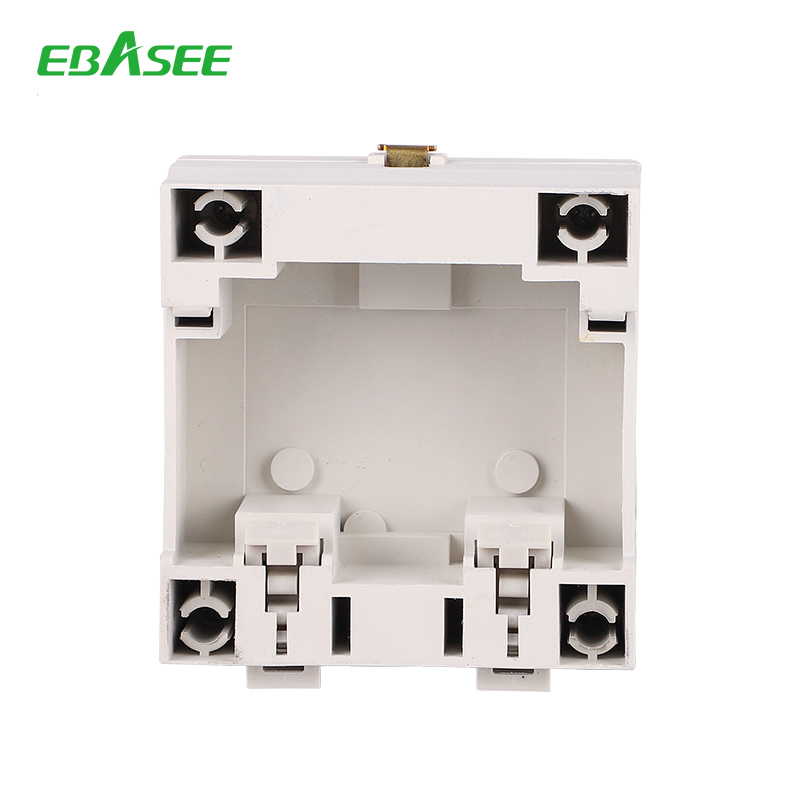

AC30 Modular Socket


Modular socket applies to circuit of AC 50/60 Hz,voltage 230/400V,current up to 25A.It is mainly used for family, office, farm, distribution box, lighting box, light industry etc, also available for non-specialists using.Life is longer than others with phosphor copper and flame retardant plastics material. It conforms to IEC 60884-1;GB 1002;GB2009.1 stardand.


Standard AC30
Rated current In 10, 16, 25A
Width(mm) mm 45
Connection capacity mm² ≤4mm²
Frequency Hz 50/60Hz
Electrical life 5000 times
Rated Insulation voltage Ui V 5000V
Protection class IP20
Standard mounting mm 35mm DIN rail
Ambient temperature -5℃  to +40℃

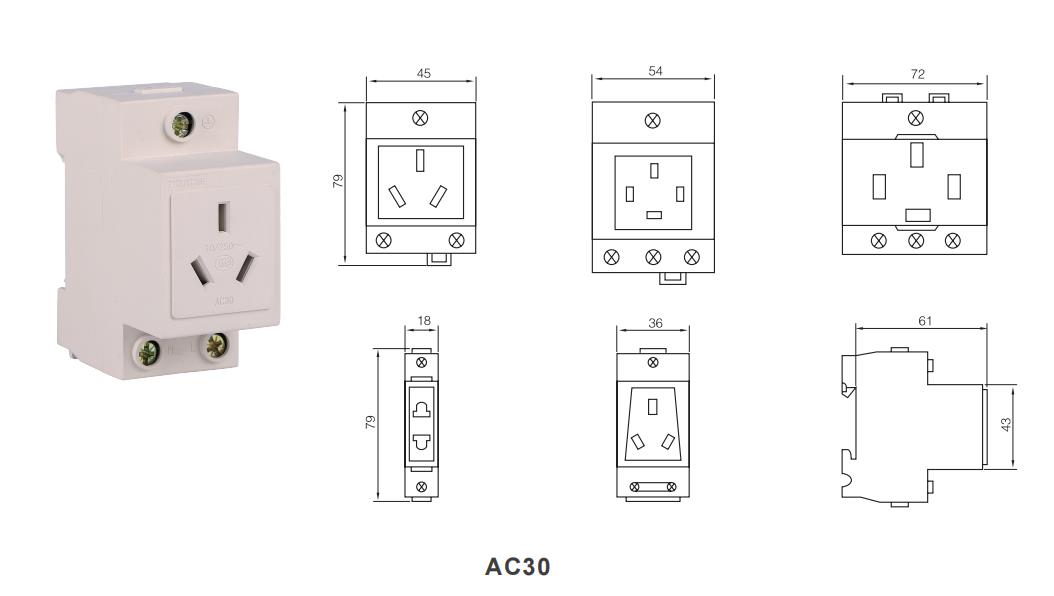

AC30 Modular Socket Dimensions
