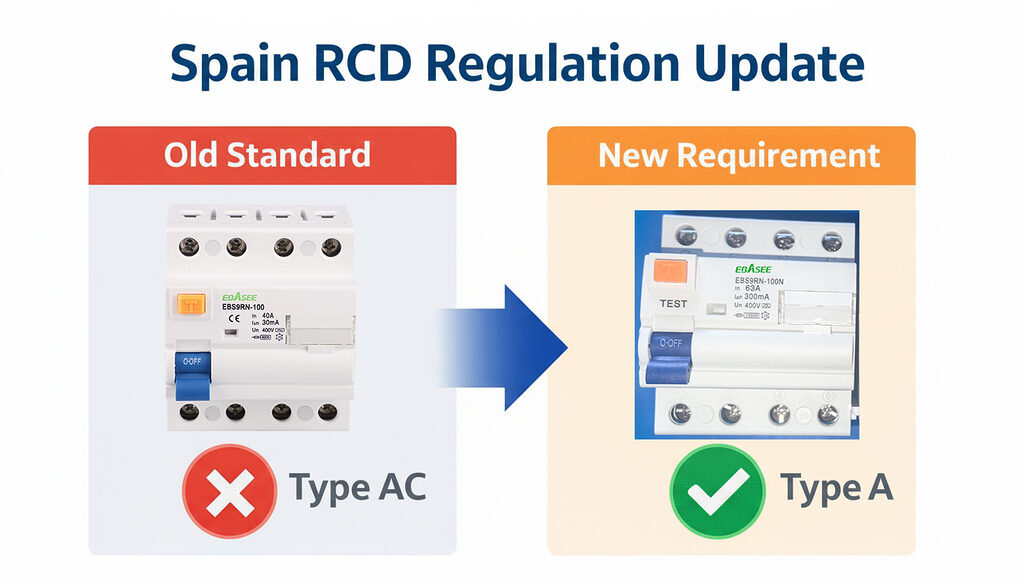

Spain RCD Regulation Update and Its Impact on RCD Selection
According to recent updates and feedback from the Spanish market, Type AC RCCBs are no longer considered suitable for residential applications in Spain due to their inability to detect modern leakage current characteristics.
The updated requirements emphasize the need for RCDs that can detect pulsating DC residual currents, which are commonly generated by today’s electronic devices such as EV chargers, inverter appliances, and smart home systems.
As a result:
✅ Type A RCCB is now the minimum recommended standard for residential installations in Spain
✅ Higher-level protection types such as Type F and Type B RCCBs are required for specific applications involving inverters, EV charging, and renewable energy systems
Why RCD Selection Matters More Than Ever
With the evolution of electrical loads, selecting the correct RCD type is no longer just a technical detail—it is a compliance and safety requirement under Spain and EU electrical regulations.
Using an inappropriate RCD type may lead to:
Failure to detect leakage currents
Increased risk of electric shock or fire
Non-compliance with Spanish and EU standards
Project rejection or legal liability
Therefore, understanding the differences between Type AC, Type A, Type F, and Type B RCCBs is essential for electrical distributors, contractors, and engineers operating in Spain.
Choosing the Right RCD Type for Your Application in Spain
The updated Spain regulation effectively shifts the market from basic protection (Type AC RCCB) to application-based selection (Type A, Type F, and Type B RCCBs).
In the following section, we compare different RCD types to help you select the most suitable solution for your projects.

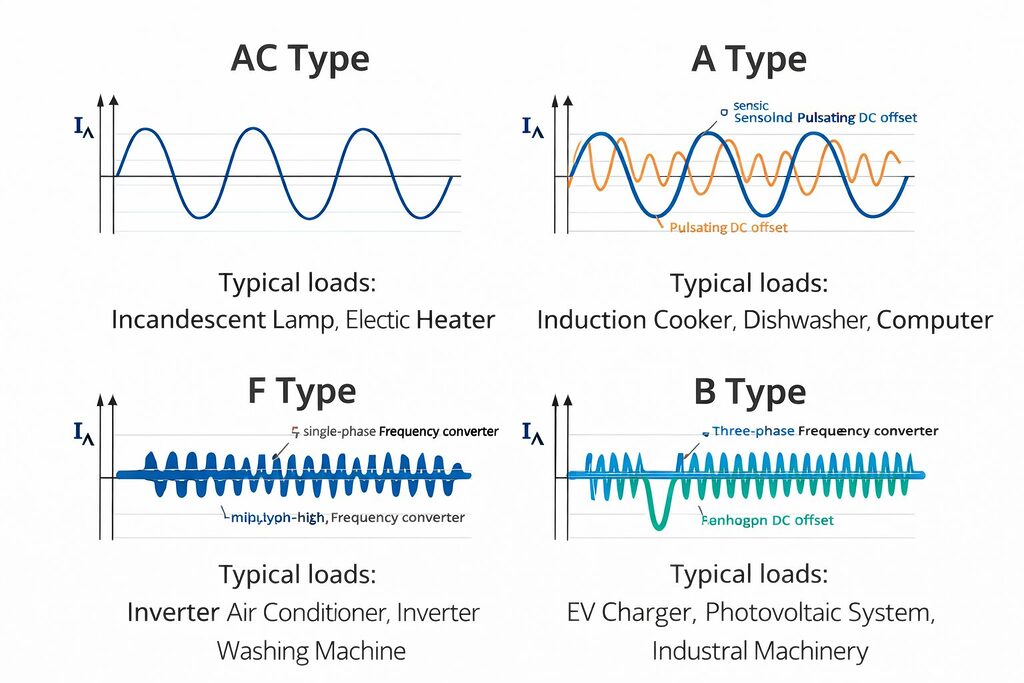

RCD Types Comparison: AC vs A vs F vs B
Detection capability:
Detects pure sinusoidal AC residual currents only
Suitable for:
Linear loads without electronic components
Typical applications:
Incandescent lighting
Electric heaters
Water heaters
Ovens
Vacuum cleaners
⚠️ Limitation:
Not suitable for modern electrical installations with electronic devices
Detection capability:
Detects AC and pulsating DC residual currents
Suitable for:
Loads with rectification or basic electronic circuits
Typical applications:
Induction cookers
Microwave ovens
Dishwashers
Office computers
Residential and commercial buildings
✅ Status in Spain:
Minimum recommended / required standard for residential applications
Type F RCCB
Detection capability:
Detects AC, pulsating DC, and high-frequency residual currents
Suitable for:
Single-phase variable frequency drive (VFD) applications
Typical applications:
Air conditioners (inverter type)
Washing machines with frequency converters
Heat pumps
Swimming pool pumps (inverter type)
Advantage:
Improved immunity to nuisance tripping and enhanced protection for inverter-based loads
Detection capability:
Detects AC, pulsating DC, and smooth DC residual currents
Suitable for:
Three-phase systems and DC-related applications
Typical applications:
EV charging stations
Elevators
Cranes and industrial machinery
Photovoltaic (solar) systems
Three-phase frequency converters
✅ Highest level of protection for complex and industrial applications
Quick Comparison of RCD Types
| Type | Residual Current Detected | Typical Loads | Application Level |
| AC | AC only | Resistive loads | Basic / outdated |
| A | AC + Pulsating DC | Household electronics | Standard |
| F | AC + Pulsating DC + High frequency | Inverter appliances | Advanced |
| B | AC + Pulsating DC + Smooth DC | EV, PV, industrial systems | Premium / industrial |
How to Choose the Right RCD Type in Spain (2026 Guide)
For the Spain market in 2026, the RCD selection guideline is clear:
1）Residential applications → Minimum Type A RCCB
2） Inverter appliances → Consider Type F RCCB
3） EV charging / PV systems / industrial → Use Type B RCCB
4） Choosing the correct RCD type ensures:
Compliance with Spain RCD regulations
Reliable protection in modern electrical systems
Long-term operational safety
Reduced risk of system failure or liability
