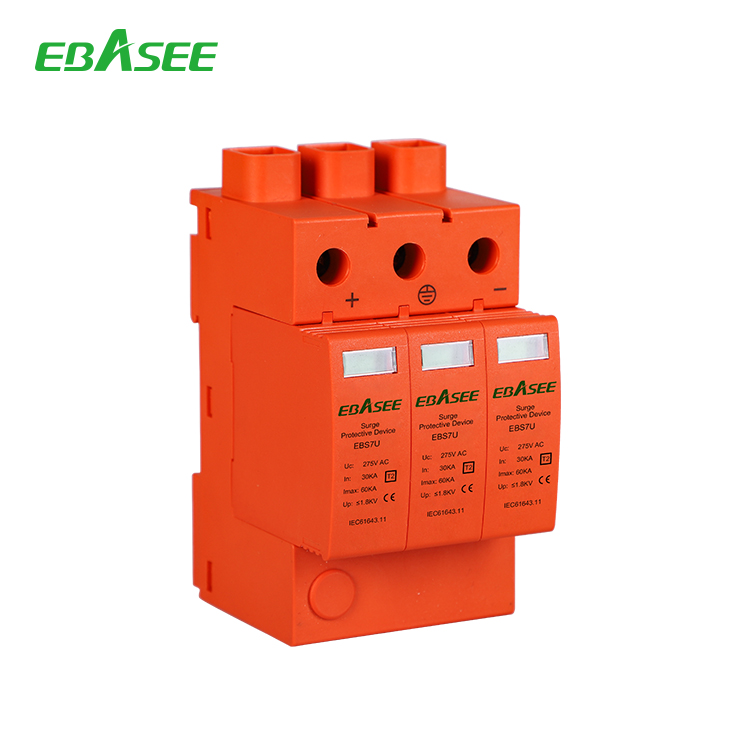

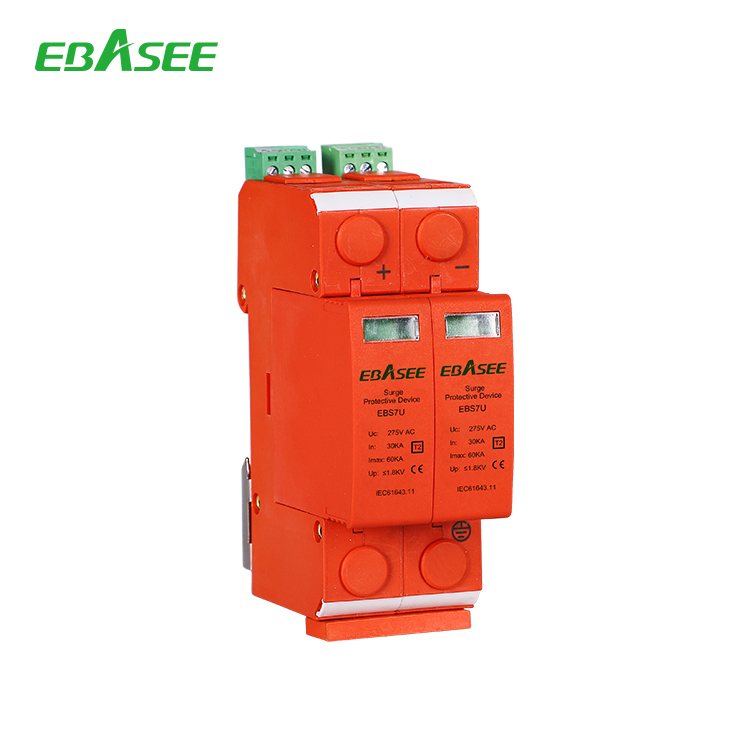

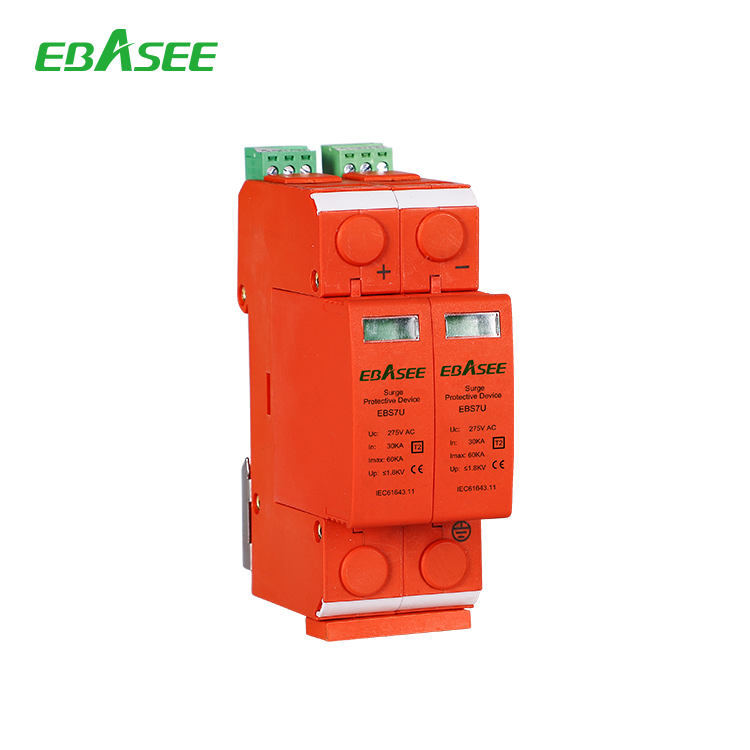

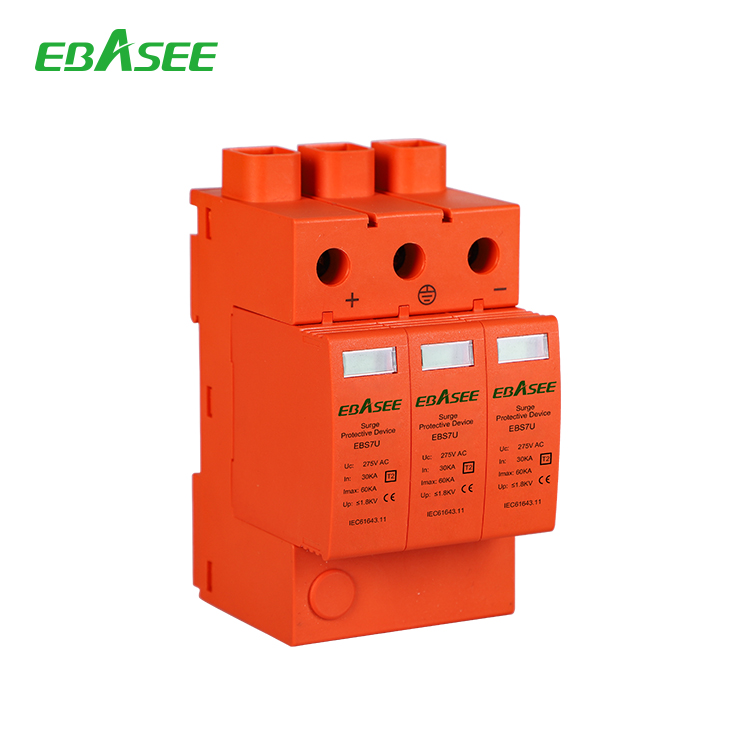

EBS7U Surge Protector

Function

EBS7U Series Surge protector device(hereinafter referred to as SPD) is used for power supply systems such as IT, TT, TN-C, TN-S, TN-CS, etc. for low-voltage AC distribution systems, for indirect lightning and direct lightning or other A surge of transient overvoltage is protected. The SPD has a common mode(MC) and differential mode(MD) protection. The SPD complies with GB/T18802.1/IEC61643-II.

Specifications

Standard EBS7U
According to IEC61643-11 Type 2
Max. continous operation AC voltage Uc 275V AC
Norminal discharge current  (8/20μs) In 20kA
Maximum discharge current (8/20μs) Imax 40kA
Voltage protection level  (L-N) Up 1.5kV
Response time   (L-N) tA 25ns
Environment temperature Tu -40C~80C
Status indicator Green / red
Mounting 35mm DIN-rail
Cross section of wire (Min.) mm² 4mm²
Cross section of wire (Max.) mm² 35mm²
Casing material Thermoplastic UL94-V0
Degree of protection IP20
Remote Signalling Optional
Poles 1P.2P.3P.4P.1P+N.3P+N.1P+NPE.3P+NPE

Application

Suitable for residential, commercial, and industrial AC distribution systems, including distribution panels and electrical equipment protection against lightning and switching surges.

FAQ

Q1: What types of surge protection are available?

A: The EBS series offers Type 2 surge protection for low-voltage AC distribution systems.

Q2: What discharge current ratings are available?

A: The series offers nominal discharge currents (In) from 5kA to 50kA and maximum discharge currents (Imax) up to 100kA, depending on the model.

Q3: Is the SPD compatible with different electrical systems?

A: Yes. It supports TT, TN-C, TN-S, TN-C-S, and IT earthing systems, with multiple pole configurations available.

Q4: How is the SPD installed and maintained?

A: It supports 35mm DIN rail mounting and features a green/red status indicator for easy maintenance.

Q5: Can the SPD be customized for different project requirements?

A: Different pole configurations, discharge current ratings, and optional remote signaling are available to meet project requirements.
