A Complete Guide to Solar PV Power Generation, DC Protection, Inverters, Transformers and Grid Distribution

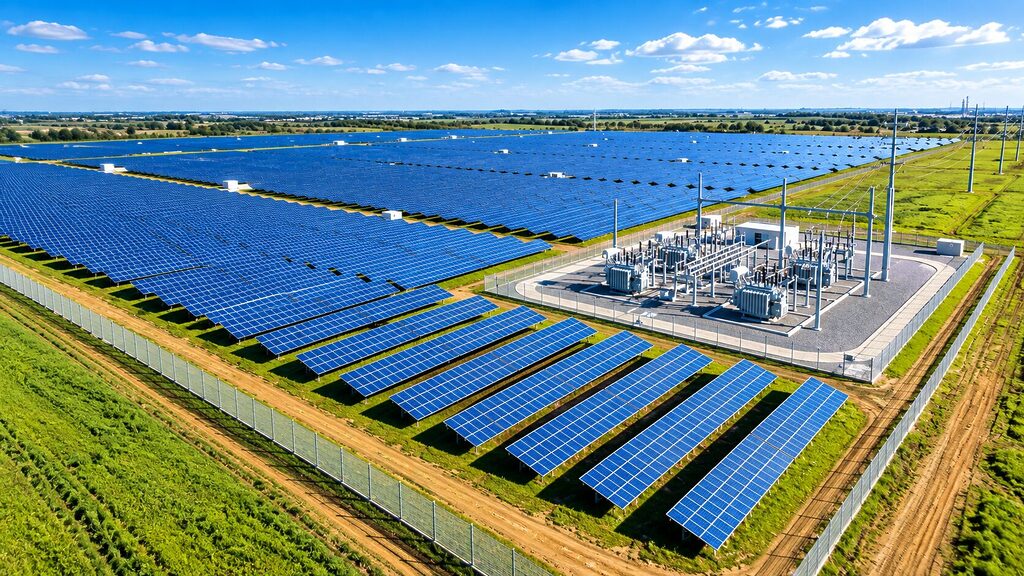

Understanding the electrical infrastructure behind utility-scale solar power generation.
Solar photovoltaic (PV) power plants convert sunlight into electricity that can be supplied to electrical grids and ultimately used by residential, commercial and industrial consumers.
However, generating electricity with solar panels is only the beginning of the process.
Before solar energy reaches a residential home, it must pass through several electrical stages involving DC power collection, protection, power conversion, voltage transformation and grid distribution.
Each stage requires properly selected electrical equipment to support safe and reliable system operation.
For solar project developers, EPC contractors, electrical distributors and equipment procurement professionals, understanding these stages is essential when selecting components for a solar power plant.
This article explains how a typical utility-scale solar PV system works, identifies the main electrical equipment involved and explores the importance of DC protection and power distribution in solar energy applications.

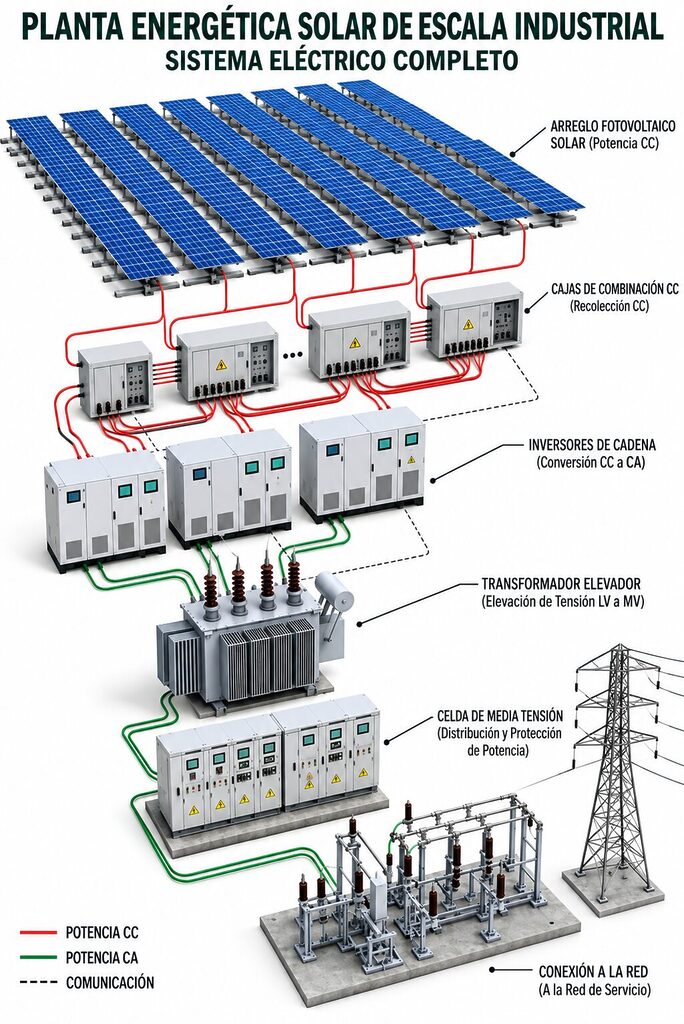

A utility-scale solar power plant typically consists of photovoltaic arrays, DC collection equipment, inverters, transformers, switchgear and grid interconnection infrastructure.
In a conventional grid-connected system using central inverters, the electrical energy follows this general sequence:
The DC collection stage may differ depending on the inverter architecture. For example, some string-inverter systems connect PV strings directly to inverter inputs without a separate external DC combiner box.
The following sections explain the function of each major electrical stage.
Solar photovoltaic modules generate direct current (DC) electricity through the photovoltaic effect.
Why DC electrical protection matters
PV systems present particular electrical safety challenges.
DC circuits do not have the periodic current zero crossings found in AC systems. Consequently, interrupting DC fault currents requires appropriately designed switching and protective equipment.
PV arrays may also remain energized whenever sufficient sunlight is available, even after certain downstream equipment has been disconnected.
For this reason, PV array design must consider suitable DC-rated protection, isolation, cable selection, earthing and installation requirements.
IEC 62548-1 establishes design requirements for photovoltaic arrays, including DC wiring, electrical protection devices, switching and earthing provisions.
In solar installations using centralized DC collection, DC combiner boxes collect electrical output from multiple PV strings and combine it into one or more DC output circuits.
The combined output is then connected to the downstream power conversion equipment.

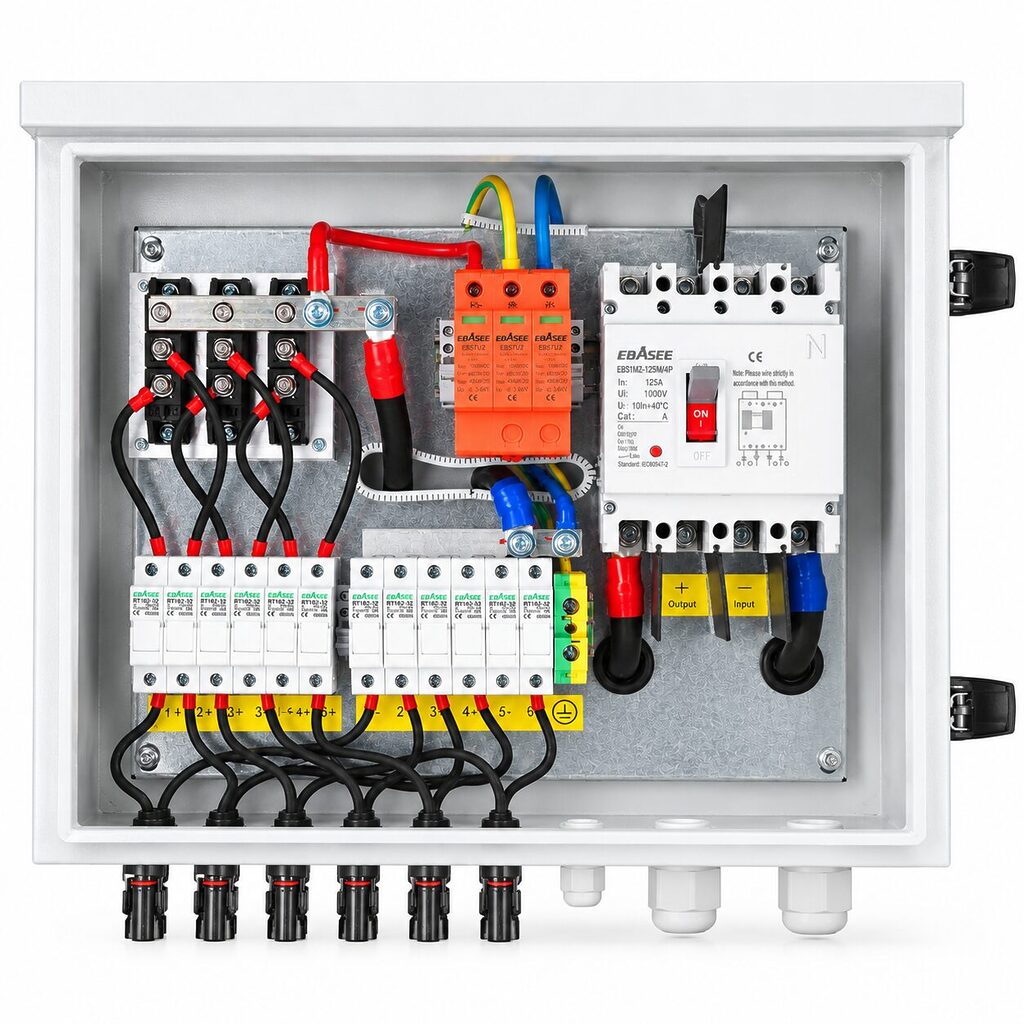

Beyond power collection, a properly designed PV combiner box can integrate several electrical protection and isolation functions.
Main electrical components of a PV combiner box
Selecting a PV combiner box
For EPC contractors and electrical procurement teams, the selection of a DC combiner box should consider:
Maximum PV system voltage and operating current.
Number of input strings and output circuits.
DC protective device ratings and coordination.
Enclosure environmental protection and installation conditions.
Cable entry arrangements, thermal management and maintenance accessibility.
Monitoring and communication requirements, where applicable.
The final configuration must be determined by the project electrical design rather than by enclosure size or the number of PV strings alone.
Solar PV modules generate DC electricity, while conventional electrical grids operate using alternating current (AC).
Solar inverters convert the DC electricity generated by PV arrays into AC electricity suitable for connection to the electrical system.
In addition to DC-to-AC conversion, grid-connected inverters may provide functions such as maximum power point tracking (MPPT), electrical monitoring and grid-support capabilities, depending on their design.
Two commonly used inverter architectures in utility-scale PV systems are central inverters and string inverters.
Inverter type Typical configuration
Central inverter Receives combined DC power from multiple PV strings or sub-arrays.
String inverter Converts power from one or more connected PV strings, with multiple inverters distributed throughout the plant.
The selection between these architectures affects DC collection, equipment layout, protection arrangements and maintenance requirements.
Grid-connected inverters must also comply with applicable grid connection requirements, which may include voltage and frequency operating limits, protection functions and power quality requirements.
The U.S. Department of Energy explains the role of solar inverters in DC-to-AC conversion and their contribution to grid operation.
After the inverter converts DC electricity into AC electricity, the generated power is transferred through the plant's AC electrical system.

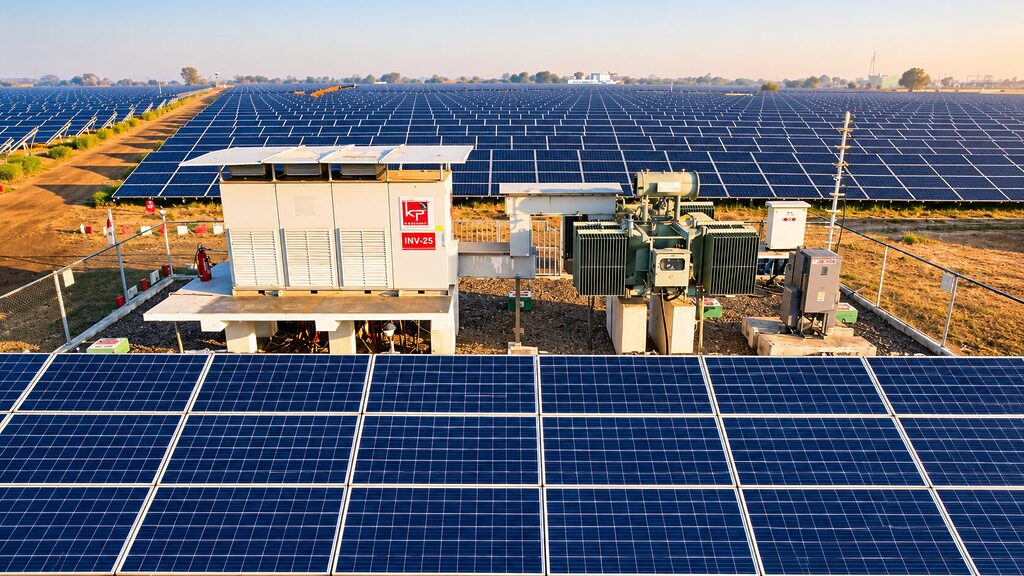

In many utility-scale solar installations, step-up transformers increase the inverter output voltage to a higher voltage level suitable for the plant's collection network or grid interconnection.
Increasing the voltage reduces the current required to transmit a given amount of three-phase power, helping to reduce resistive losses when other operating conditions are comparable.
For example, an inverter output at low voltage may be stepped up to a medium-voltage collection system before being transferred to the plant substation.
The actual voltage levels and transformer arrangement depend on the project capacity, inverter design and grid connection requirements.
Transformers perform voltage transformation; they do not convert DC electricity into AC electricity.

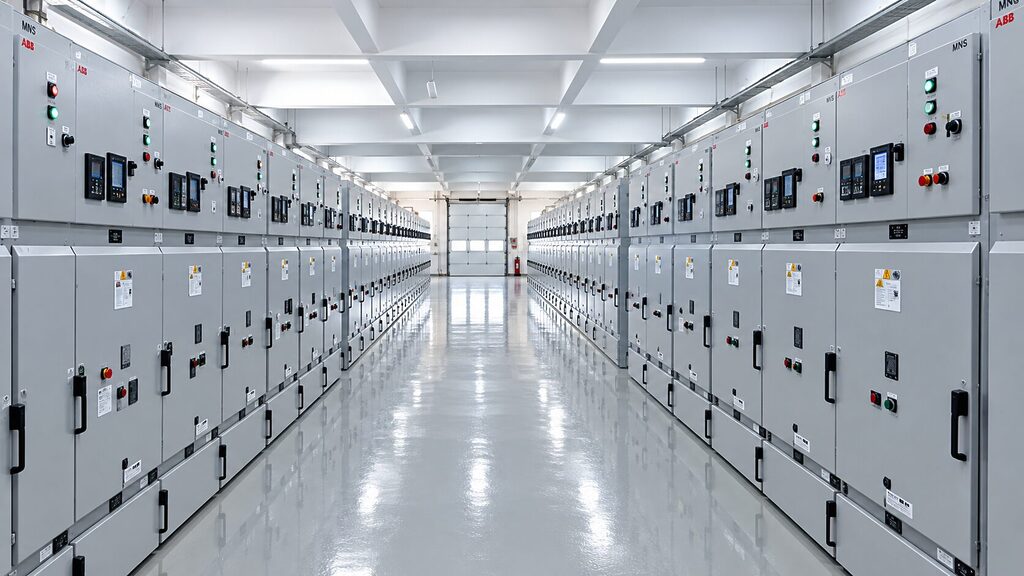

Medium-voltage (MV) switchgear forms part of the electrical infrastructure used to control, protect and isolate circuits within the solar plant's medium-voltage system.
Depending on the project design, the MV switchgear arrangement may include circuit breakers, disconnectors, earthing switches, instrument transformers, protection relays and associated control equipment.
These devices support functions such as fault detection, circuit interruption, electrical isolation and operational control.
The specific switchgear configuration is determined by the plant's single-line diagram, protection coordination studies and applicable grid connection requirements.
After passing through the required grid interconnection equipment, the generated electricity can be delivered to the wider electrical network.
Once solar-generated electricity enters the electrical grid, it becomes part of the interconnected power system.
Depending on the plant's location and connection voltage, electricity may pass through transmission infrastructure, substations and distribution networks before reaching end users.

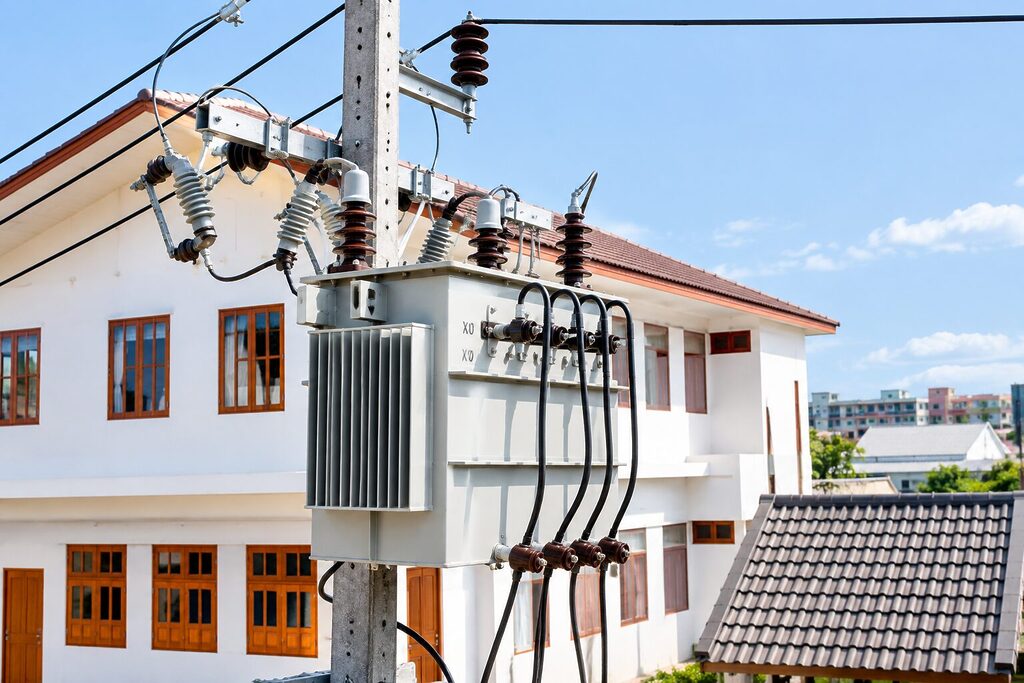

Distribution transformers reduce the voltage to levels suitable for residential and other low-voltage consumers.
This means electricity generated by a utility-scale solar plant can contribute to the electricity supply used by homes, businesses and industrial facilities.
However, electricity from a grid-connected solar plant is not normally delivered through a dedicated electrical path to an individual household.
Instead, the plant injects electricity into the interconnected grid, where generation and demand are balanced across the electrical network.
The U.S. Department of Energy describes how transmission and distribution systems transport electricity and how transformers convert voltage between different levels of the grid.
Solar power generation varies with sunlight availability and weather conditions.

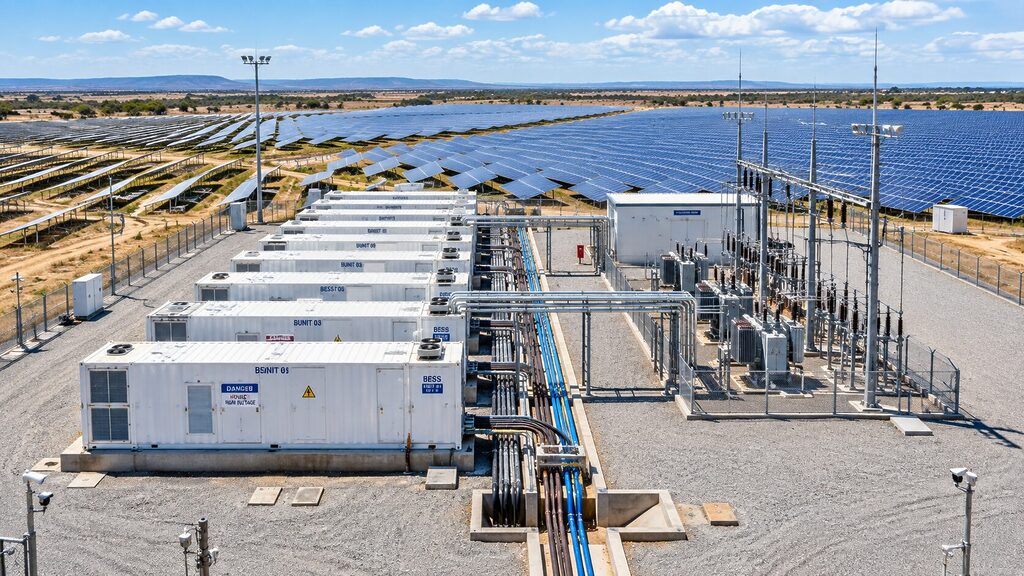

Battery energy storage systems (BESS) can store electrical energy and release it later, helping solar plants manage the timing of electricity delivery.
A solar-plus-storage installation may use either a DC-coupled or AC-coupled architecture.
In a DC-coupled configuration, the battery system is connected on the DC side through an appropriate power conversion and control arrangement.
In an AC-coupled configuration, the battery system connects to the AC electrical network through its own power conversion equipment.
Battery storage can support applications such as energy shifting, output management and certain grid services, depending on the system configuration and operating strategy.
However, not every solar power plant includes battery storage.
Furthermore, a conventional grid-connected solar plant does not automatically provide backup electricity to residential consumers during a grid outage. Backup operation requires specifically designed equipment, protection and operating arrangements.
The U.S. Department of Energy and NREL provide further information on solar-plus-storage configurations and their role in electricity systems.
In addition to the main electrical power circuit, utility-scale solar installations commonly incorporate monitoring and control systems.
These systems collect operating information from equipment such as inverters, protection devices, electrical meters and monitoring units.
Depending on the system architecture, communication infrastructure may support:
Monitoring of electrical output and operating conditions.
Detection and reporting of equipment alarms.
Remote supervision and authorized control.
Collection of operational data for maintenance and performance analysis.
Communication networks transmit information and control signals rather than the main electrical power generated by the PV array.
The monitoring architecture, communication protocols and available control functions depend on the installed equipment and the plant's supervisory control system.
Electrical protection is an important consideration throughout the solar power generation process, from the PV array to the grid connection point.
At the DC collection stage, equipment must be selected for the electrical characteristics and operating conditions of photovoltaic systems.
This includes consideration of maximum DC voltage, continuous operating current, potential fault conditions, environmental exposure and the required isolation arrangements.
For example, a protective device designed only for AC applications should not be assumed suitable for use in a DC circuit.
DC equipment must have appropriate manufacturer-specified ratings for its intended application.
Similarly, a device's rated current alone is insufficient to establish its suitability for a particular PV installation.
Its rated voltage, relevant operating characteristics, applicable standards and coordination with other protective devices must also be considered.
The IEC 62548-1 standard provides a technical framework for PV array design, including DC wiring, electrical protection, switching and earthing requirements.
Electrical standards relevant to PV system design
The following standards are commonly relevant to different aspects of PV electrical equipment and system design.
Standard Technical scope
IEC 62548-1 Design requirements for photovoltaic arrays.
IEC 60269-6 Supplementary requirements for fuse-links used to protect solar photovoltaic energy systems.
IEC 61643-31 Requirements and test methods for SPDs intended for photovoltaic installations.
IEC 60947-3 Low-voltage switches, disconnectors, switch-disconnectors and fuse-combination units.
IEC 60947-2 Low-voltage circuit breakers within the standard's scope.
IEC 62109-1 / -2 Safety requirements for power converters used in photovoltaic power systems.
IEC 61439 series Low-voltage switchgear and controlgear assemblies.
The applicability of each standard depends on the equipment type, system configuration and local regulatory requirements.
Compliance with an individual component standard does not automatically establish compliance of the complete PV installation.
Reliable solar power generation depends not only on PV modules and inverters, but also on the electrical equipment used for power collection, circuit protection, isolation and distribution.
EBASEE provides low-voltage electrical products and solar DC solutions for electrical distributors, solar equipment importers, EPC contractors and OEM/ODM partners.
Our solar-related product portfolio includes DC circuit protection devices, surge protective devices, isolators and configurable PV combiner boxes.
| Solar DC product portfolio | |
 | PV Combiner Boxes Configurable DC collection and protection assemblies for photovoltaic installations. Available configurations can integrate DC fuses, SPDs, isolators and other project specific components. Explore PV Combiner Box Solutions |
 | DC Miniature Circuit Breakers DC circuit protection prouucts for applications within their specified electrical ratings. Explore DC Circuit Breakers |
 | DC Surge Protective Devices Surge protection solutions for photovoltaic DC electrical systems, subject to the applicable device ratings and protection design. Explore DC Surge Protection |
 | DC Isolator Switches DC switching and isolation products for photovoltaic electrical applications. Explore DC Isolator Switches |
Supporting B2B solar electrical projects
For solar equipment distributors, system integrators and project procurement teams, EBASEE offers manufacturing and customization services to support different product and application requirements.
Our capabilities include:
OEM and ODM services for electrical product distributors and private-label partners.
Configurable PV combiner box assemblies based on project requirements.
Product selection support for solar DC protection and distribution applications.
Manufacturing and quality control processes for low-voltage electrical equipment.
Product documentation and applicable certification information for procurement evaluation.
For project-specific applications, equipment selection should be confirmed against the relevant technical datasheets, electrical design and applicable standards.
Q1. Does every solar power plant require a DC combiner box?
No. The need for a separate DC combiner box depends on the system architecture. Central-inverter systems commonly use DC collection equipment, while some string-inverter systems connect PV strings directly to inverter inputs.
Q2. What is the difference between a DC combiner box and an inverter?
A DC combiner box collects PV string outputs and may incorporate electrical protection and isolation devices. An inverter converts DC electricity into AC electricity suitable for the connected electrical system.
Q3. Why are DC-rated protection devices required in solar PV systems?
DC circuits have different current interruption characteristics from AC circuits. Protective devices must therefore be selected with appropriate DC voltage, current and interruption ratings for the intended application.
Q4. Can a solar power plant supply electricity to homes at night?
A PV plant does not generate electricity from sunlight at night. However, a grid-connected home can continue receiving electricity from the wider grid. Solar energy stored in a suitably configured battery system may also be discharged later.
Q5. What should EPC contractors consider when selecting PV combiner boxes?
Important considerations include system voltage, string current, input and output configuration, protective device coordination, enclosure environmental ratings, installation conditions and project-specific technical requirements.
A utility-scale solar power plant involves much more than photovoltaic panels.
From solar energy collection and DC circuit protection to inverter conversion, voltage transformation and grid distribution, each electrical stage contributes to the operation of the overall system.
Understanding these stages helps electrical distributors, EPC contractors and solar project developers select suitable equipment and develop electrical solutions that meet their project requirements.
For the DC collection and protection stage, appropriately designed combiner boxes, circuit breakers, fuses, surge protective devices and isolators are important elements of the electrical infrastructure.
EBASEE supports solar electrical applications with DC protection products, configurable PV combiner boxes and OEM/ODM manufacturing services for B2B partners.
Whether you are sourcing solar DC components, developing a PV combiner box solution or expanding your electrical product portfolio, EBASEE can support your procurement and customization requirements.
Contact our team to discuss your project specifications, product requirements and OEM/ODM opportunities.
